Upload BOM| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

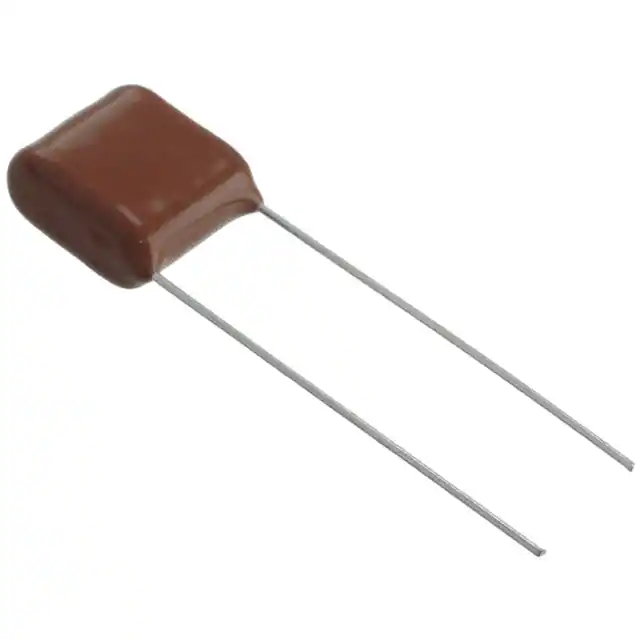

ECQ-E1105JFCAP FILM 1UF 5% 100VDC RADIAL |
3,871 | 0.91 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 1 µF | ±5% | 63V | 100V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.472 L x 0.264 W (12.00mm x 6.70mm) | 0.591 (15.00mm) | PC Pins | 0.394 (10.00mm) | General Purpose | - |
|
ECW-FD2J473JQCAP FILM 0.047UF 5% 630VDC RAD |
2,241 | 0.76 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(D) | Active | 0.047 µF | ±5% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.496 L x 0.173 W (12.60mm x 4.40mm) | 0.504 (12.80mm) | PC Pins | 0.394 (10.00mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
|
ECQ-E6473JFCAP FILM 0.047UF 5% 630VDC RAD |
2,665 | 0.80 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 0.047 µF | ±5% | 250V | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.472 L x 0.256 W (12.00mm x 6.50mm) | 0.571 (14.50mm) | PC Pins | 0.394 (10.00mm) | General Purpose | - |
|

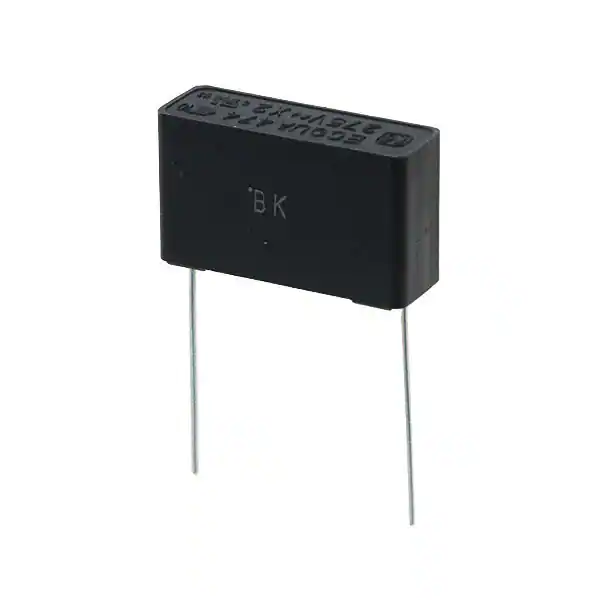

ECQ-UAAF474KCAP FILM 0.47UF 10% 275VAC RAD |
2,448 | 0.80 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-UA | Active | 0.47 µF | ±10% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.024 L x 0.335 W (26.00mm x 8.50mm) | 0.610 (15.50mm) | PC Pins | 0.886 (22.50mm) | EMI, RFI Suppression | X2 |
|
ECQ-UBAF102V5CAP FILM 0.001UF 10% 300VAC RADI |
2,245 | 0.81 |
RFQ |
Datasheet |
Radial | Bulk | ECQUB | Active | 1000 pF | ±10% | 300V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.602 L x 0.197 W (15.30mm x 5.00mm) | 0.669 (17.00mm) | PC Pins | 0.591 (15.00mm) | EMI, RFI Suppression | X1, Y2 |
|
|
ECQ-UBAF222V5CAP FILM 0.0022UF 10% 300VAC RAD |
3,350 | 0.81 |
RFQ |
Datasheet |
Radial | Bulk | ECQUB | Active | 2200 pF | ±10% | 300V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.602 L x 0.197 W (15.30mm x 5.00mm) | 0.669 (17.00mm) | PC Pins | 0.591 (15.00mm) | EMI, RFI Suppression | X1, Y2 |
|

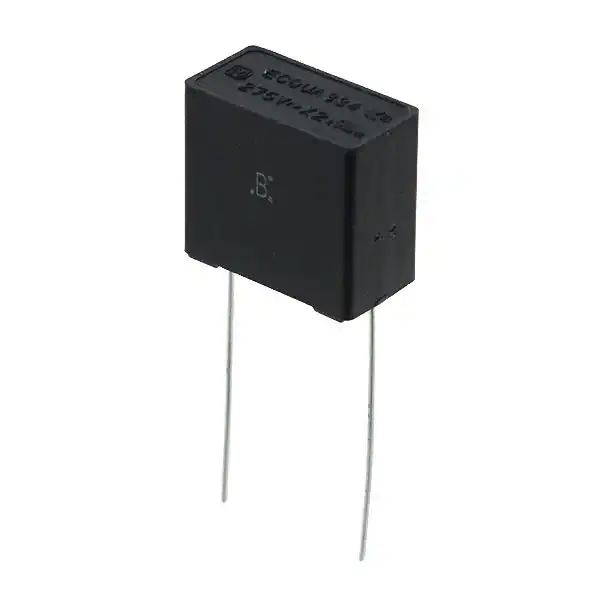

ECQ-UAAF334MCAP FILM 0.33UF 20% 275VAC RAD |
2,122 | 0.83 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-UA | Active | 0.33 µF | ±20% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.689 L x 0.354 W (17.50mm x 9.00mm) | 0.650 (16.50mm) | PC Pins | 0.591 (15.00mm) | EMI, RFI Suppression | X2 |
|
ECQ-UBAF473KCAP FILM 0.047UF 10% 300VAC RADI |
3,948 | 0.83 |
RFQ |
Datasheet |
Radial | Bulk | ECQUB | Active | 0.047 µF | ±10% | 300V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.728 L x 0.276 W (18.50mm x 7.00mm) | 0.472 (12.00mm) | PC Pins | 0.591 (15.00mm) | EMI, RFI Suppression | X1 |
|
ECQ-E1105KFCAP FILM 1UF 10% 100VDC RADIAL |
2,354 | 0.86 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 1 µF | ±10% | 63V | 100V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.472 L x 0.264 W (12.00mm x 6.70mm) | 0.591 (15.00mm) | PC Pins | 0.394 (10.00mm) | General Purpose | - |
 Series Straight 18x10.jpg)
|
ECW-FA2J474JCAP FILM 0.47UF 5% 630VDC RADIAL |
2,519 | 0.88 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(A) | Active | 0.47 µF | ±5% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.717 L x 0.394 W (18.20mm x 10.00mm) | 0.594 (15.10mm) | PC Pins | 0.591 (15.00mm) | High Frequency, Switching | - |
|

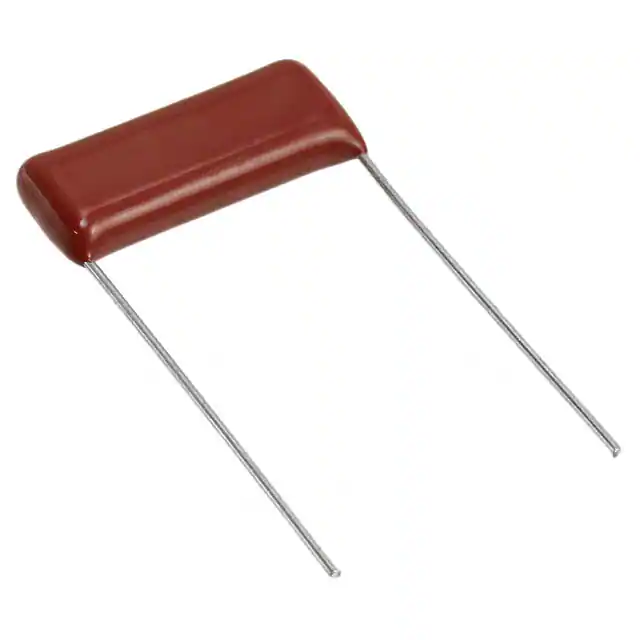

ECW-HC3F242JCAP FILM 2400PF 5% 3KVDC RADIAL |
2,053 | 0.89 |
RFQ |
Datasheet |
Radial | Bulk | ECW-H(C) | Active | 2400 pF | ±5% | 1060V (1.06kV) | 3000V (3kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.016 L x 0.240 W (25.80mm x 6.10mm) | 0.429 (10.90mm) | PC Pins | 0.886 (22.50mm) | General Purpose | - |
|
ECW-H16222JVCAP FILM 2200PF 5% 1.6KVDC RAD |
2,600 | 0.89 |
RFQ |
Datasheet |
Radial | Bulk | ECW-H(V) | Active | 2200 pF | ±5% | 424V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709 L x 0.256 W (18.00mm x 6.50mm) | 0.591 (15.00mm) | PC Pins | 0.591 (15.00mm) | High Frequency, Switching | - |
|
|
ECW-H16102JVCAP FILM 1000PF 5% 1.6KVDC RAD |
3,152 | 0.89 |
RFQ |
Datasheet |
Radial | Bulk | ECW-H(V) | Active | 1000 pF | ±5% | 424V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709 L x 0.256 W (18.00mm x 6.50mm) | 0.591 (15.00mm) | PC Pins | 0.591 (15.00mm) | High Frequency, Switching | - |
|
ECQ-E6334KFCAP FILM 0.33UF 10% 630VDC RAD |
2,687 | 0.91 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 0.33 µF | ±10% | 250V | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.024 L x 0.307 W (26.00mm x 7.80mm) | 0.709 (18.00mm) | PC Pins | 0.886 (22.50mm) | General Purpose | - |
|
ECW-H16103JVCAP FILM 10000PF 5% 1.6KVDC RAD |
3,861 | 0.95 |
RFQ |
Datasheet |
Radial | Bulk | ECW-H(V) | Active | 10000 pF | ±5% | 424V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.906 L x 0.315 W (23.00mm x 8.00mm) | 0.630 (16.00mm) | PC Pins | 0.787 (20.00mm) | High Frequency, Switching | - |
|
ECW-FD2J474JCAP FILM 0.47UF 5% 630VDC RADIAL |
2,870 | 0.95 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(D) | Active | 0.47 µF | ±5% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.701 L x 0.307 W (17.80mm x 7.80mm) | 0.559 (14.20mm) | PC Pins | 0.591 (15.00mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
|
ECQ-E4474KFCAP FILM 0.47UF 10% 400VDC RAD |
3,297 | 1.01 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 0.47 µF | ±10% | 200V | 400V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.728 L x 0.307 W (18.50mm x 7.80mm) | 0.709 (18.00mm) | PC Pins | 0.591 (15.00mm) | General Purpose | - |
|
|
ECQ-E4474JFCAP FILM 0.47UF 5% 400VDC RADIAL |
3,171 | 1.05 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 0.47 µF | ±5% | 200V | 400V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.728 L x 0.307 W (18.50mm x 7.80mm) | 0.709 (18.00mm) | PC Pins | 0.591 (15.00mm) | General Purpose | - |
|

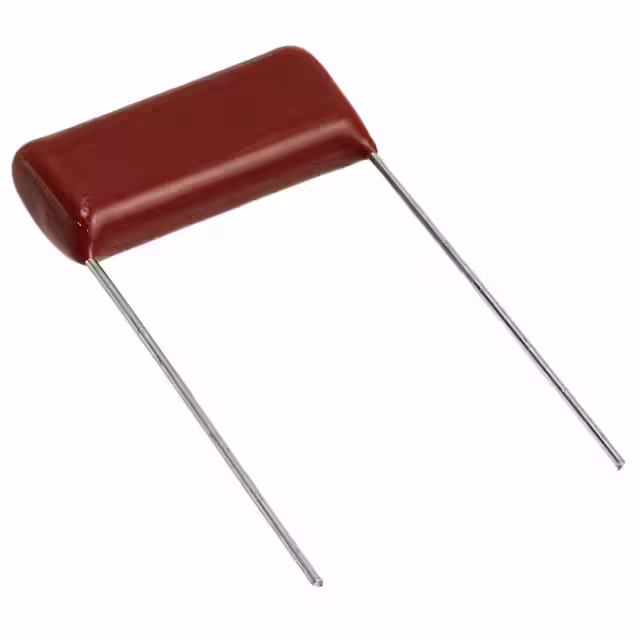

ECW-HC3F392JCAP FILM 3900PF 5% 3KVDC RADIAL |
3,356 | 1.05 |
RFQ |
Datasheet |
Radial | Bulk | ECW-H(C) | Active | 3900 pF | ±5% | 1060V (1.06kV) | 3000V (3kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.016 L x 0.295 W (25.80mm x 7.50mm) | 0.480 (12.20mm) | PC Pins | 0.886 (22.50mm) | General Purpose | - |
 Series.jpg)
|
ECW-FE2W225JCAP FILM 2.2UF 5% 450VDC RADIAL |
2,200 | 1.11 |
RFQ |
Datasheet |
Radial | Bulk | ECWFE | Active | 2.2 µF | ±5% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.689 L x 0.394 W (17.50mm x 10.00mm) | 0.630 (16.00mm) | PC Pins | 0.591 (15.00mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
