Upload BOM| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECQ-E4185KZCAP FILM 1.8UF 10% 400VDC RADIAL |
777 | 1.20 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(K) | Obsolete | 1.8 µF | ±10% | - | 400V | Polyester, Metallized | - | -40°C ~ 85°C | Through Hole | 1.673 L x 0.531 W (42.50mm x 13.50mm) | 0.945 (24.00mm) | PC Pins | 1.516 (38.50mm) | General Purpose | - |
|
ECW-U2223KC9CAP FILM 0.022UF 10% 250VDC 1913 |
417 | 1.26 |
RFQ |
Datasheet |
1913 (4833 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECW-U(C) | Active | 0.022 µF | ±10% | 125V | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.189 L x 0.130 W (4.80mm x 3.30mm) | 0.087 (2.20mm) | Solder Pads | - | General Purpose | - |
|
ECH-U1153JC9CAP FILM 0.015UF 5% 100VDC 1913 |
254 | 1.26 |
RFQ |
Datasheet |
1913 (4833 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECH-U(C) | Active | 0.015 µF | ±5% | 40V | 100V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 105°C | Surface Mount | 0.189 L x 0.130 W (4.80mm x 3.30mm) | 0.087 (2.20mm) | Solder Pads | - | General Purpose | - |
.jpg)
|
ECH-U1H823GX9CAP FILM 0.082UF 2% 50VDC 1913 |
889 | 1.32 |
RFQ |
Datasheet |
1913 (4833 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECH-U(X) | Active | 0.082 µF | ±2% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.189 L x 0.130 W (4.80mm x 3.30mm) | 0.091 (2.30mm) | Solder Pads | - | General Purpose | - |
|
|
ECH-U1273GC9CAP FILM 0.027UF 2% 100VDC 1913 |
790 | 1.43 |
RFQ |
Datasheet |
1913 (4833 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECH-U(C) | Active | 0.027 µF | ±2% | 40V | 100V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 105°C | Surface Mount | 0.189 L x 0.130 W (4.80mm x 3.30mm) | 0.118 (3.00mm) | Solder Pads | - | General Purpose | - |
|

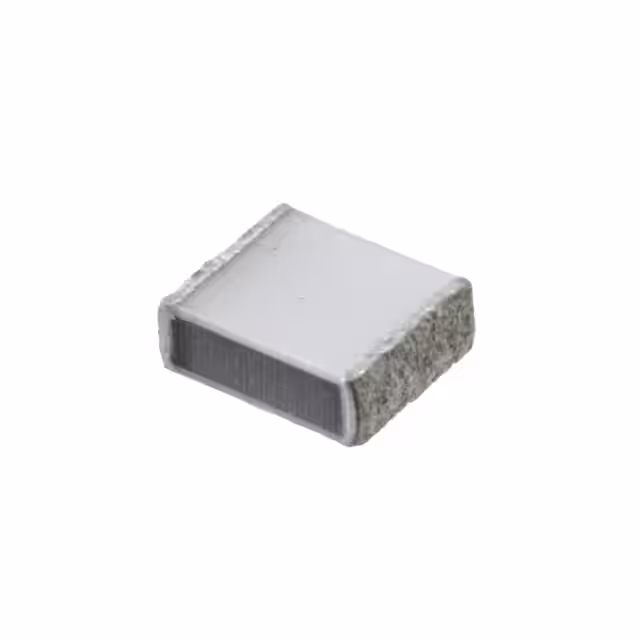

ECW-U1104V33CAP FILM 0.1UF 5% 100VDC 1913 |
924 | 1.49 |
RFQ |
Datasheet |
1913 (4833 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECW-U(C) | Active | 0.1 µF | ±5% | - | 100V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.189 L x 0.130 W (4.80mm x 3.30mm) | 0.118 (3.00mm) | - | - | General Purpose | - |
|
|
ECW-U2333JC9CAP FILM 0.033UF 5% 250VDC 1913 |
442 | 1.54 |
RFQ |
Datasheet |
1913 (4833 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECW-U(C) | Active | 0.033 µF | ±5% | 125V | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.189 L x 0.130 W (4.80mm x 3.30mm) | 0.118 (3.00mm) | Solder Pads | - | General Purpose | - |
|
ECW-U1104JC9CAP FILM 0.1UF 5% 100VDC 2416 |
366 | 1.72 |
RFQ |
Datasheet |
2416 (6041 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECW-U(C) | Active | 0.1 µF | ±5% | 40V | 100V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.236 L x 0.161 W (6.00mm x 4.10mm) | 0.079 (2.00mm) | Solder Pads | - | General Purpose | - |
|
ECW-F2185JBCAP FILM 1.8UF 5% 250VDC RADIAL |
870 | 1.77 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(B) | Obsolete | 1.8 µF | ±5% | - | 250V | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Through Hole | 1.102 L x 0.492 W (28.00mm x 12.50mm) | 0.886 (22.50mm) | PC Pins | 0.984 (25.00mm) | High Frequency, Switching | - |
|
ECW-U4683V17CAP FILM 0.068UF 5% 400VDC 2825 |
1,000 | 1.78 |
RFQ |
Datasheet |
2825 (7163 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECW-UC(V17) | Active | 0.068 µF | ±5% | 157V | 400V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 85°C | Surface Mount | 0.280 L x 0.248 W (7.10mm x 6.30mm) | 0.189 (4.80mm) | Solder Pads | - | DC Link, DC Filtering | - |
|
ECW-U4823V17CAP FILM 0.082UF 5% 400VDC 3925 |
836 | 1.78 |
RFQ |
Datasheet |
3925 (9863 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECW-UC(V17) | Active | 0.082 µF | ±5% | 157V | 400V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 85°C | Surface Mount | 0.386 L x 0.248 W (9.80mm x 6.30mm) | 0.150 (3.80mm) | Solder Pads | - | DC Link, DC Filtering | - |
|
ECH-U1H184JX9CAP FILM 0.18UF 5% 50VDC 2416 |
640 | 1.80 |
RFQ |
Datasheet |
2416 (6041 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECH-U(X) | Active | 0.18 µF | ±5% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.236 L x 0.161 W (6.00mm x 4.10mm) | 0.106 (2.70mm) | Solder Pads | - | General Purpose | - |
|
ECW-U4124V17CAP FILM 0.12UF 5% 400VDC 3931 |
526 | 1.89 |
RFQ |
Datasheet |
3931 (9880 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECW-UC(V17) | Active | 0.12 µF | ±5% | - | 400V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 85°C | Surface Mount | 0.386 L x 0.315 W (9.80mm x 8.00mm) | 0.165 (4.20mm) | Solder Pads | - | DC Link, DC Filtering | - |
|

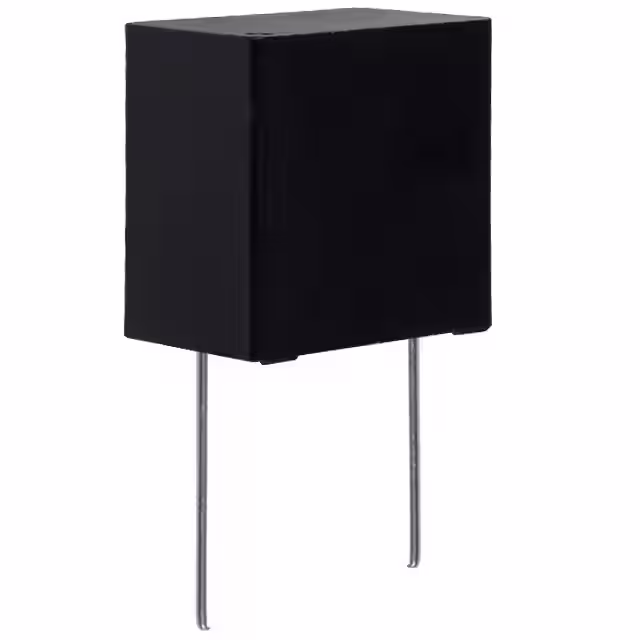

ECQ-U2A185MLCAP FILM 1.8UF 20% 275VAC RADIAL |
213 | 1.98 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-UL | Obsolete | 1.8 µF | ±20% | 275V | - | Polyester, Metallized | - | -40°C ~ 100°C | Through Hole | 1.201 L x 0.748 W (30.50mm x 19.00mm) | 1.181 (30.00mm) | PC Pins | 1.083 (27.50mm) | EMI, RFI Suppression | X2 |
|

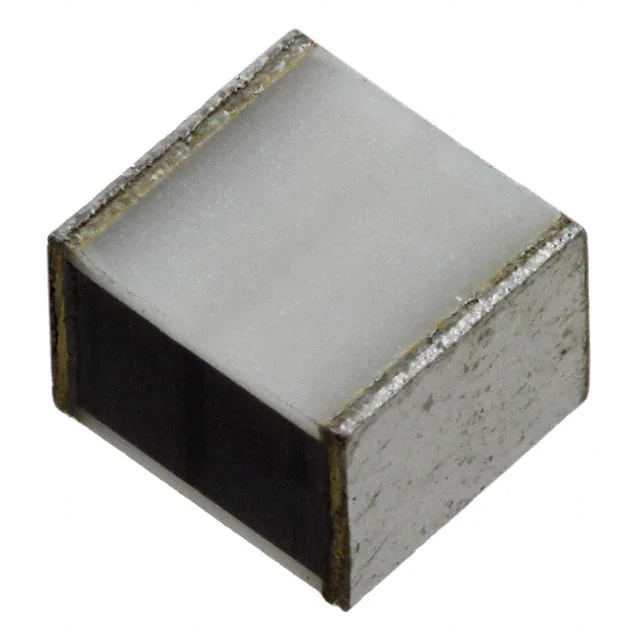

ECW-UC2J333JVCAP FILM 0.033UF 5% 630VDC 2825 |
2,035 | 2.01 |
RFQ |
Datasheet |
2825 (7163 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECW-U(C) | Active | 0.033 µF | ±5% | 250V | 630V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.280 L x 0.248 W (7.10mm x 6.30mm) | 0.201 (5.10mm) | Solder Pads | - | General Purpose | - |
|

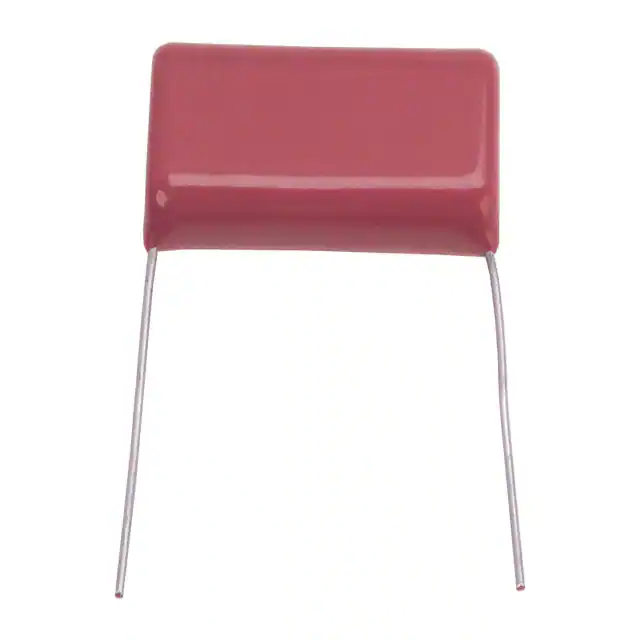

ECQ-E1565KZCAP FILM 5.6UF 10% 100VDC RADIAL |
134 | 2.30 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E | Obsolete | 5.6 µF | ±10% | - | 100V | Polyester, Metallized | - | -40°C ~ 85°C | Through Hole | 1.201 L x 0.492 W (30.50mm x 12.50mm) | 0.866 (22.00mm) | PC Pins | 1.083 (27.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - |
|
|
ECW-U2154KCVCAP FILM 0.15UF 10% 250VDC 2825 |
1,000 | 2.89 |
RFQ |
Datasheet |
2825 (7163 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECW-U(C) | Active | 0.15 µF | ±10% | 125V | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.280 L x 0.248 W (7.10mm x 6.30mm) | 0.146 (3.70mm) | Solder Pads | - | General Purpose | - |
|
ECQ-U2A684MVCAP FILM 0.68UF 20% 250VAC RAD |
481 | 2.89 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-UV | Obsolete | 0.68 µF | ±20% | 250V | - | Polyester, Metallized | - | -40°C ~ 85°C | Through Hole | 1.201 L x 0.531 W (30.50mm x 13.50mm) | 0.945 (24.00mm) | PC Pins | 1.083 (27.50mm) | EMI, RFI Suppression | X2 |
|
ECH-U1224GCVCAP FILM 0.22UF 2% 100VDC 2825 |
608 | 3.64 |
RFQ |
Datasheet |
2825 (7163 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECH-U(C) | Active | 0.22 µF | ±2% | 40V | 100V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 105°C | Surface Mount | 0.280 L x 0.248 W (7.10mm x 6.30mm) | 0.201 (5.10mm) | Solder Pads | - | General Purpose | - |
|
JS181126-AACAP FILM 12UF 10% 180VAC CHAS MT |
3,587 | 6.03 |
RFQ |
Datasheet |
Rectangular Box | Bulk | SMF | Obsolete | 12 µF | ±10% | 180V | - | Polypropylene (PP), Metallized | - | -25°C ~ 70°C | Chassis Mount | 1.555 L x 0.866 W (39.50mm x 22.00mm) | 1.280 (32.50mm) | Quick Connect - 0.187 (4.7mm) | - | Motor Run | - |
