Upload BOM| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECW-H12332JVCAP FILM 3300PF 5% 1.25KVDC RAD |
3,493 | 1.14 |
RFQ |
Datasheet |
Radial | Bulk | ECW-H(V) | Active | 3300 pF | ±5% | 354V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709 L x 0.295 W (18.00mm x 7.50mm) | 0.630 (16.00mm) | PC Pins | 0.591 (15.00mm) | High Frequency, Switching | - |
|
ECQ-UAAF105MCAP FILM 1UF 20% 275VAC RADIAL |
3,332 | 1.14 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-UA | Active | 1 µF | ±20% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.024 L x 0.472 W (26.00mm x 12.00mm) | 0.768 (19.50mm) | PC Pins | 0.886 (22.50mm) | EMI, RFI Suppression | X2 |
|
ECW-FD2J105KCAP FILM 1UF 10% 630VDC RADIAL |
3,324 | 1.16 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(D) | Active | 1 µF | ±10% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.996 L x 0.331 W (25.30mm x 8.40mm) | 0.591 (15.00mm) | PC Pins | 0.886 (22.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
|
ECQ-E2275KFCAP FILM 2.7UF 10% 250VDC RADIAL |
2,083 | 1.19 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 2.7 µF | ±10% | 150V | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.024 L x 0.370 W (26.00mm x 9.40mm) | 0.709 (18.00mm) | PC Pins | 0.886 (22.50mm) | General Purpose | - |
 Series.jpg)
|
ECW-FE2W335JCAP FILM 3.3UF 5% 450VDC RADIAL |
2,341 | 1.19 |
RFQ |
Datasheet |
Radial | Bulk | ECWFE | Active | 3.3 µF | ±5% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.024 L x 0.394 W (26.00mm x 10.00mm) | 0.669 (17.00mm) | PC Pins | 0.886 (22.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
|

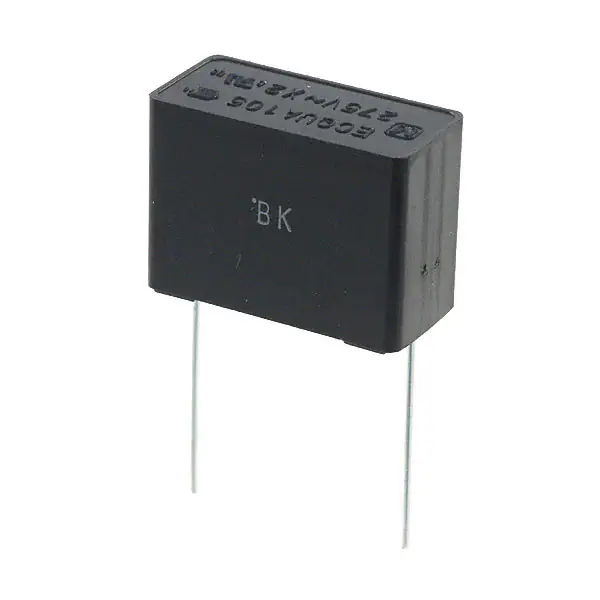

ECQ-UAAF105KCAP FILM 1UF 10% 275VAC RADIAL |
3,436 | 1.27 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-UA | Active | 1 µF | ±10% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.024 L x 0.472 W (26.00mm x 12.00mm) | 0.768 (19.50mm) | PC Pins | 0.886 (22.50mm) | EMI, RFI Suppression | X2 |
|
ECQ-E6474KFCAP FILM 0.47UF 10% 630VDC RAD |
2,565 | 1.29 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 0.47 µF | ±10% | 250V | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.024 L x 0.366 W (26.00mm x 9.30mm) | 0.768 (19.50mm) | PC Pins | 0.886 (22.50mm) | General Purpose | - |
|
|
ECW-H12822JVCAP FILM 8200PF 5% 1.25KVDC RAD |
3,485 | 1.38 |
RFQ |
Datasheet |
Radial | Bulk | ECW-H(V) | Active | 8200 pF | ±5% | 354V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709 L x 0.295 W (18.00mm x 7.50mm) | 0.610 (15.50mm) | PC Pins | 0.591 (15.00mm) | High Frequency, Switching | - |
|
|
ECQ-E6474JFCAP FILM 0.47UF 5% 630VDC RADIAL |
2,756 | 1.50 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 0.47 µF | ±5% | 250V | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.024 L x 0.366 W (26.00mm x 9.30mm) | 0.768 (19.50mm) | PC Pins | 0.886 (22.50mm) | General Purpose | - |
|

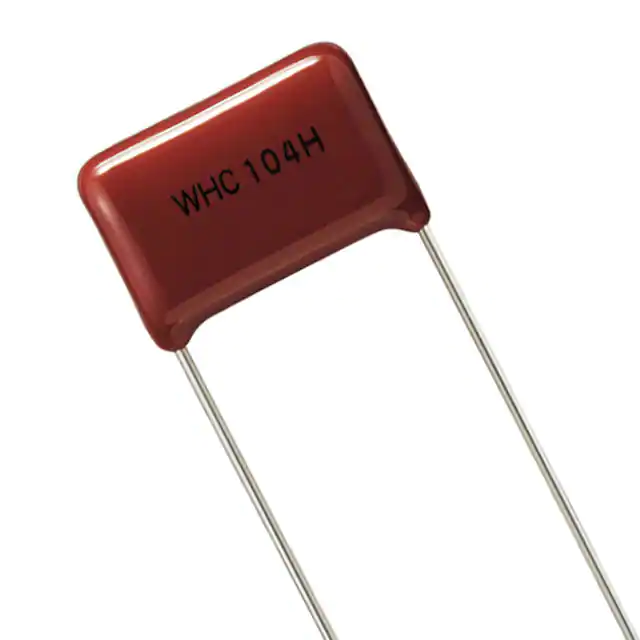

ECW-H6104HCCAP FILM 0.1UF 3% 630VDC RADIAL |
2,885 | 1.52 |
RFQ |
Datasheet |
Radial | Bulk | ECW-H(C) | Active | 0.1 µF | ±3% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.815 L x 0.339 W (20.70mm x 8.60mm) | 0.591 (15.00mm) | PC Pins | 0.689 (17.50mm) | General Purpose | - |
|
|
ECQ-E4105JFCAP FILM 1UF 5% 400VDC RADIAL |
2,534 | 1.54 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 1 µF | ±5% | 200V | 400V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.024 L x 0.335 W (26.00mm x 8.50mm) | 0.748 (19.00mm) | PC Pins | 0.886 (22.50mm) | General Purpose | - |
|
ECW-FD2W475JCAP FILM 4.7UF 5% 450VDC RADIAL |
3,308 | 1.68 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(D) | Active | 4.7 µF | ±5% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.996 L x 0.421 W (25.30mm x 10.70mm) | 0.646 (16.40mm) | PC Pins | 0.886 (22.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
|
ECW-F6103HLCAP FILM 10000PF 3% 630VDC RAD |
2,468 | 1.72 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(L) | Active | 10000 pF | ±3% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.492 L x 0.205 W (12.50mm x 5.20mm) | 0.374 (9.50mm) | PC Pins | 0.394 (10.00mm) | High Frequency, Switching | - |
|
|
ECW-F6104JLCAP FILM 0.1UF 5% 630VDC RADIAL |
3,138 | 1.77 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(L) | Active | 0.1 µF | ±5% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709 L x 0.303 W (18.00mm x 7.70mm) | 0.535 (13.60mm) | PC Pins | 0.591 (15.00mm) | High Frequency, Switching | - |
|
ECW-FG1B105JCAP FILM 1UF 5% 1.1KVDC RADIAL |
2,934 | 1.84 |
RFQ |
Datasheet |
Radial | Bulk | ECWFG | Active | 1 µF | ±5% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240 L x 0.413 W (31.50mm x 10.50mm) | 0.846 (21.50mm) | PC Pins | 1.083 (27.50mm) | Automotive; High Frequency, Switching | AEC-Q200 |
|
|
ECW-F6154JLCAP FILM 0.15UF 5% 630VDC RADIAL |
3,392 | 1.99 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(L) | Active | 0.15 µF | ±5% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709 L x 0.358 W (18.00mm x 9.10mm) | 0.591 (15.00mm) | PC Pins | 0.591 (15.00mm) | High Frequency, Switching | - |
|
ECW-F4204JLCAP FILM 0.2UF 5% 400VDC RADIAL |
2,858 | 2.04 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(L) | Active | 0.2 µF | ±5% | 141V | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.610 L x 0.339 W (15.50mm x 8.60mm) | 0.583 (14.80mm) | PC Pins | 0.492 (12.50mm) | High Frequency, Switching | - |
|
|
ECW-F4204HLCAP FILM 0.2UF 3% 400VDC RADIAL |
3,277 | 2.18 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(L) | Active | 0.2 µF | ±3% | 141V | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.610 L x 0.339 W (15.50mm x 8.60mm) | 0.583 (14.80mm) | PC Pins | 0.492 (12.50mm) | High Frequency, Switching | - |
 Series Straight 18x12.jpg)
|
ECW-F2225JACAP FILM 2.2UF 5% 250VDC RADIAL |
2,745 | 2.21 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(A) | Active | 2.2 µF | ±5% | 125V | 250V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.740 L x 0.496 W (18.80mm x 12.60mm) | 0.752 (19.10mm) | PC Pins | 0.591 (15.00mm) | High Frequency, Switching | - |
|
|
ECW-H12473JVCAP FILM 0.047UF 5% 1.25KVDC RAD |
3,866 | 2.31 |
RFQ |
Datasheet |
Radial | Bulk | ECW-H(V) | Active | 0.047 µF | ±5% | 354V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.906 L x 0.453 W (23.00mm x 11.50mm) | 0.866 (22.00mm) | PC Pins | 0.787 (20.00mm) | High Frequency, Switching | - |
