Upload BOM| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

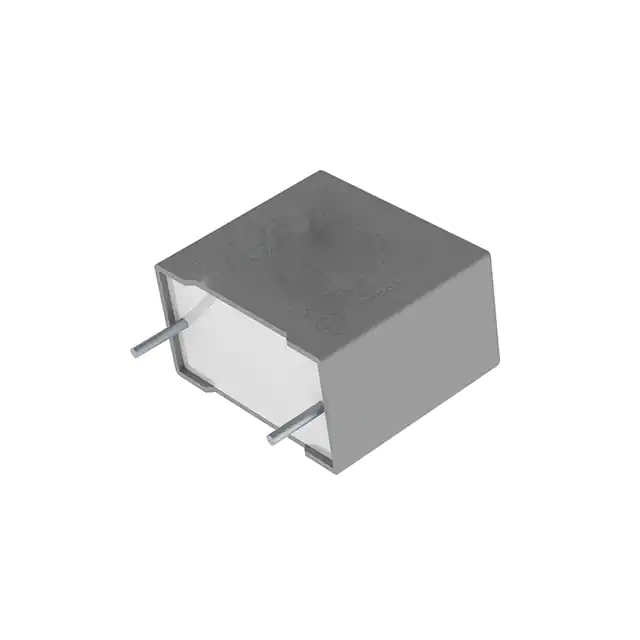

R475R34705001KCAP FILM 0.47UF 10% 1KVDC RADIAL |
3,624 | 2.73 |
RFQ |
Datasheet |
Radial | Tray | R47 | Active | 0.47 µF | ±10% | 520V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 85°C | Through Hole | 1.260 L x 0.512 W (32.00mm x 13.00mm) | 0.870 (22.10mm) | PC Pins | 1.083 (27.50mm) | EMI, RFI Suppression | X2 |
|
C4AQSBU4200A1YJCAP FILM 2UF 5% 1.5KVDC RADIAL |
2,698 | 2.78 |
RFQ |
Datasheet |
Radial | Bulk | C4AQ | Active | 2 µF | ±5% | - | 1500V (1.5kV) | Polypropylene (PP), Metallized | 14.1 mOhms | -40°C ~ 105°C | Through Hole | 1.240 L x 0.551 W (31.50mm x 14.00mm) | 1.110 (28.20mm) | PC Pins | 1.083 (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 |
|
|
C4AQULU4180A12JCAP FILM 1.8UF 5% 1.3KVDC RADIAL |
3,110 | 2.82 |
RFQ |
Datasheet |
Radial | Bulk | C4AQ | Active | 1.8 µF | ±5% | - | 1300V (1.3kV) | Polypropylene (PP), Metallized | 18.8 mOhms | -55°C ~ 105°C | Through Hole | 1.260 L x 0.945 W (32.00mm x 24.00mm) | 0.598 (15.20mm) | PC Pins | 1.083 (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 |
|
R76QR3220SE30JCAP FILM 0.22UF 5% 1KVDC RADIAL |
2,663 | 2.92 |
RFQ |
Datasheet |
Radial | Bulk | R76 | Active | 0.22 µF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.260 L x 0.512 W (32.00mm x 13.00mm) | 0.866 (22.00mm) | PC Pins | 1.083 (27.50mm) | High Frequency, Switching; High Pulse, DV/DT | - |
|
|
R76QR3100SE40JCAP FILM 0.1UF 5% 1KVDC RADIAL |
3,007 | 2.92 |
RFQ |
Datasheet |
Radial | Bulk | R76 | Active | 0.1 µF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.260 L x 0.354 W (32.00mm x 9.00mm) | 0.669 (17.00mm) | PC Pins | 1.083 (27.50mm) | High Frequency, Switching; High Pulse, DV/DT | - |
|
PHE450RD6150JR06L2CAP FILM 0.15UF 5% 1.6KVDC RAD |
3,958 | 2.94 |
RFQ |
Datasheet |
Radial | Bulk | PHE450 | Active | 0.15 µF | ±5% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024 L x 0.531 W (26.00mm x 13.50mm) | 0.906 (23.00mm) | PC Pins | 0.886 (22.50mm) | High Frequency, Switching | - |
|
SMR5474J63J05L16.5CBULKCAP FILM 0.47UF 5% 63VDC RADIAL |
2,767 | 2.94 |
RFQ |
Datasheet |
Radial | Bulk | SMR | Active | 0.47 µF | ±5% | 40V | 63V | Polyphenylene Sulfide (PPS), Metallized | - | -55°C ~ 150°C | Through Hole | 0.283 L x 0.236 W (7.20mm x 6.00mm) | 0.433 (11.00mm) | PC Pins | 0.197 (5.00mm) | General Purpose | - |
|
|
C4AQUBU4220A1YJCAP FILM 2.2UF 5% 1.3KVDC RADIAL |
3,961 | 2.94 |
RFQ |
Datasheet |
Radial | Bulk | C4AQ | Active | 2.2 µF | ±5% | - | 1300V (1.3kV) | Polypropylene (PP), Metallized | 16 mOhms | -40°C ~ 105°C | Through Hole | 1.240 L x 0.551 W (31.50mm x 14.00mm) | 1.110 (28.20mm) | PC Pins | 1.083 (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 |
|
|
C4AQCBU4560A1XJCAP FILM 5.6UF 5% 650VDC RADIAL |
3,504 | 2.94 |
RFQ |
Datasheet |
Radial | Bulk | C4AQ | Active | 5.6 µF | ±5% | - | 650V | Polypropylene (PP), Metallized | 10.7 mOhms | -40°C ~ 105°C | Through Hole | 1.240 L x 0.512 W (31.50mm x 13.00mm) | 0.992 (25.20mm) | PC Pins | 1.083 (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 |
|
|
C4AQQBU4330A1YJCAP FILM 3.3UF 5% 1.1KVDC RADIAL |
3,451 | 3.01 |
RFQ |
Datasheet |
Radial | Bulk | C4AQ | Active | 3.3 µF | ±5% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 12.9 mOhms | -40°C ~ 105°C | Through Hole | 1.240 L x 0.551 W (31.50mm x 14.00mm) | 1.110 (28.20mm) | PC Pins | 1.083 (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 |
|
|
R76QR31004040JCAP FILM 0.1UF 5% 1KVDC RADIAL |
3,714 | 3.03 |
RFQ |
Datasheet |
Radial | Tray | R76 | Active | 0.1 µF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.260 L x 0.354 W (32.00mm x 9.00mm) | 0.673 (17.10mm) | PC Pins | 1.083 (27.50mm) | High Frequency, Switching; High Pulse, DV/DT | - |
|
R413W36800000MCAP FILM 0.68UF 20% 1KVDC RADIAL |
2,238 | 3.03 |
RFQ |
Datasheet |
Radial | Bulk | R41 | Active | 0.68 µF | ±20% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.634 L x 0.630 W (41.50mm x 16.00mm) | 1.122 (28.50mm) | PC Pins | 1.476 (37.50mm) | EMI, RFI Suppression | X1, Y2 |
|
PHE450PD6100JR06L2CAP FILM 0.1UF 5% 1KVDC RADIAL |
3,015 | 3.05 |
RFQ |
Datasheet |
Radial | Tray | PHE450 | Active | 0.1 µF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024 L x 0.276 W (26.00mm x 7.00mm) | 0.650 (16.50mm) | PC Pins | 0.886 (22.50mm) | High Frequency, Switching | - |
|
R60IR44705040KCAP FILM 4.7UF 10% 250VDC RADIAL |
2,817 | 3.87 |
RFQ |
Datasheet |
Radial | Bulk | R60 | Active | 4.7 µF | ±10% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 1.260 L x 0.354 W (32.00mm x 9.00mm) | 0.673 (17.10mm) | PC Pins | 1.083 (27.50mm) | General Purpose | - |
|
PHE845VF6100MR30L2CAP FILM 0.1UF 20% 1.5KVDC RAD |
3,690 | 3.87 |
RFQ |
Datasheet |
Radial | Tray | PHE845 | Active | 0.1 µF | ±20% | 760V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.240 L x 0.413 W (31.50mm x 10.50mm) | 0.807 (20.50mm) | PC Pins | 1.083 (27.50mm) | EMI, RFI Suppression | X1 |
|
R463R447000M2MCAP FILM 4.7UF 20% 630VDC RADIAL |
2,001 | 3.90 |
RFQ |
Datasheet |
Radial | Bulk | R46 | Active | 4.7 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260 L x 0.709 W (32.00mm x 18.00mm) | 1.303 (33.10mm) | PC Pins | 1.083 (27.50mm) | EMI, RFI Suppression | X2 |
|
PME271M622KR30CAP FILM 0.22UF 10% 630VDC RAD |
2,757 | 3.15 |
RFQ |
Datasheet |
Radial | Bulk | PME271M | Active | 0.22 µF | ±10% | 275V | 630V | Paper, Metallized | - | -40°C ~ 110°C | Through Hole | 0.945 L x 0.445 W (24.00mm x 11.30mm) | 0.650 (16.50mm) | PC Pins | 0.799 (20.30mm) | EMI, RFI Suppression | X2 |
|
R75MR422050H4JCAP FILM 2.2UF 5% 400VDC RADIAL |
2,123 | 3.15 |
RFQ |
Datasheet |
Radial | Tray | R75H | Active | 2.2 µF | ±5% | 220V | 400V | Polypropylene (PP), Metallized | 7.2 mOhms | -55°C ~ 125°C | Through Hole | 1.260 L x 0.512 W (32.00mm x 13.00mm) | 0.988 (25.10mm) | PC Pins | 1.083 (27.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 |
|
|
R76UR282050H4JCAP FILM 0.08UF 5% 2KVDC RAD |
2,085 | 3.17 |
RFQ |
Datasheet |
Radial | Tray | R76 | Active | 0.08 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | 39 mOhms | -55°C ~ 125°C | Through Hole | 1.260 L x 0.512 W (32.00mm x 13.00mm) | 0.988 (25.10mm) | PC Pins | 1.083 (27.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 |
|
|
C4AQIBU4400A1XJCAP FILM 4UF 5% 800VDC RADIAL |
2,343 | 3.18 |
RFQ |
Datasheet |
Radial | Bulk | C4AQ | Active | 4 µF | ±5% | - | 800V | Polypropylene (PP), Metallized | 12.9 mOhms | -40°C ~ 105°C | Through Hole | 1.240 L x 0.512 W (31.50mm x 13.00mm) | 0.992 (25.20mm) | PC Pins | 1.083 (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 |
