Upload BOM| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R76UR31004030JCAP FILM 0.1UF 5% 2KVDC RADIAL |
2,685 | 4.35 |
RFQ |
Datasheet |
Radial | Tray | R76 | Active | 0.1 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.260 L x 0.551 W (32.00mm x 14.00mm) | 1.106 (28.10mm) | PC Pins | 1.083 (27.50mm) | High Frequency, Switching; High Pulse, DV/DT | - |
|

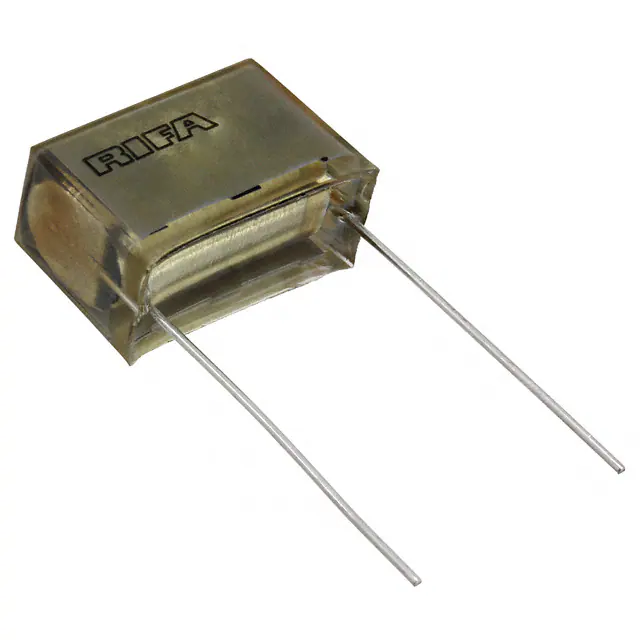

PME261JC6100KR30CAP FILM 0.1UF 10% 1KVDC RADIAL |
750 | 4.36 |
RFQ |
Datasheet |
Radial | Bulk | PME261 | Active | 0.1 µF | ±10% | 500V | 1000V (1kV) | Paper, Metallized | - | -40°C ~ 100°C | Through Hole | 0.945 L x 0.445 W (24.00mm x 11.30mm) | 0.650 (16.50mm) | PC Pins | 0.799 (20.30mm) | General Purpose | - |
|
R76QR347050H3JCAP FILM 0.47UF 5% 1KVDC RADIAL |
3,650 | 4.37 |
RFQ |
Datasheet |
Radial | Bulk | R76H | Active | 0.47 µF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | 14 mOhms | -55°C ~ 125°C | Through Hole | 1.260 L x 0.709 W (32.00mm x 18.00mm) | 1.303 (33.10mm) | PC Pins | - | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 |
|
C4AEGBU5100A1XKCAP FILM 10UF 10% 450VDC RADIAL |
682 | 4.42 |
RFQ |
Datasheet |
Radial | Bulk | C4AE | Active | 10 µF | ±10% | - | 450V | Polypropylene (PP), Metallized | 8.1 mOhms | -40°C ~ 85°C | Through Hole | 1.240 L x 0.512 W (31.50mm x 13.00mm) | 0.992 (25.20mm) | PC Pins | 1.083 (27.50mm) | DC Link, DC Filtering; High Frequency, Switching | - |
|
PHE450KF7100JR06L2CAP FILM 1UF 5% 400VDC RADIAL |
3,185 | 4.50 |
RFQ |
Datasheet |
Radial | Bulk | PHE450 | Active | 1 µF | ±5% | 250V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.240 L x 0.531 W (31.50mm x 13.50mm) | 0.906 (23.00mm) | PC Pins | 1.083 (27.50mm) | High Frequency, Switching | - |
|
C4AQSBU4450A12JCAP FILM 4.5UF 5% 1.5KVDC RADIAL |
2,468 | 4.50 |
RFQ |
Datasheet |
Radial | Bulk | C4AQ | Active | 4.5 µF | ±5% | - | 1500V (1.5kV) | Polypropylene (PP), Metallized | 7.3 mOhms | -40°C ~ 105°C | Through Hole | 1.240 L x 0.866 W (31.50mm x 22.00mm) | 1.465 (37.20mm) | PC Pins | 1.083 (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 |
|
C276CC24630AA0JCAP FILM 6.3UF 5% 470VAC RADIAL |
2,528 | 4.51 |
RFQ |
Datasheet |
Radial, Can | Box | C274 | Active | 6.3 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis Mount | 1.181 Dia (30.00mm) | 2.303 (58.50mm) | Quick Connect, Disconnect | 0.394 (10.00mm) | Motor Run | - |
|
R60ER51005040JCAP FILM 10UF 5% 100VDC RADIAL |
3,895 | 4.52 |
RFQ |
Datasheet |
Radial | Bulk | R60 | Active | 10 µF | ±5% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 1.260 L x 0.354 W (32.00mm x 9.00mm) | 0.673 (17.10mm) | PC Pins | 1.083 (27.50mm) | General Purpose | - |
|
SMR5474J50J04L4BULKCAP FILM 0.47UF 5% 50VDC RADIAL |
2,281 | 4.53 |
RFQ |
Datasheet |
Radial | Box | SMR | Active | 0.47 µF | ±5% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized | - | -55°C ~ 150°C | Through Hole | 0.283 L x 0.197 W (7.20mm x 5.00mm) | 0.394 (10.00mm) | PC Pins | 0.197 (5.00mm) | General Purpose | - |
|
R75PR42204030JCAP FILM 2.2UF 5% 630VDC RADIAL |
3,820 | 4.56 |
RFQ |
Datasheet |
Radial | Tray | R75 | Active | 2.2 µF | ±5% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.260 L x 0.709 W (32.00mm x 18.00mm) | 1.303 (33.10mm) | PC Pins | 1.083 (27.50mm) | High Frequency, Switching; High Pulse, DV/DT | - |
|
PHE450RF6150JR06L2CAP FILM 0.15UF 5% 1.6KVDC RAD |
3,821 | 4.61 |
RFQ |
Datasheet |
Radial | Bag | PHE450 | Active | 0.15 µF | ±5% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.240 L x 0.453 W (31.50mm x 11.50mm) | 0.886 (22.50mm) | PC Pins | 1.083 (27.50mm) | High Frequency, Switching | - |
|
C4AQSLW4220A34JCAP FILM 2.2UF 5% 1.5KVDC RADIAL |
2,338 | 4.61 |
RFQ |
Datasheet |
Radial - 4 Leads | Bulk | C4AQ | Active | 2.2 µF | ±5% | - | 1500V (1.5kV) | Polypropylene (PP), Metallized | 25.2 mOhms | -55°C ~ 105°C | Through Hole | 1.634 L x 0.945 W (41.50mm x 24.00mm) | 0.598 (15.20mm) | PC Pins | 1.476 (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 |
|
|
C4AQUBU4500A12JCAP FILM 5UF 5% 1.3KVDC RADIAL |
2,226 | 4.62 |
RFQ |
Datasheet |
Radial | Bulk | C4AQ | Active | 5 µF | ±5% | - | 1300V (1.3kV) | Polypropylene (PP), Metallized | 8.2 mOhms | -40°C ~ 105°C | Through Hole | 1.240 L x 0.866 W (31.50mm x 22.00mm) | 1.465 (37.20mm) | PC Pins | 1.083 (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 |
|
PHE426HF7470JR06L2CAP FILM 4.7UF 5% 250VDC RADIAL |
2,489 | 4.63 |
RFQ |
Datasheet |
Radial | Bulk | PHE426 | Active | 4.7 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.240 L x 0.531 W (31.50mm x 13.50mm) | 0.906 (23.00mm) | PC Pins | 1.083 (27.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - |
|
C4AEHBU4330A1WJCAP FILM 3.3UF 5% 600VDC RADIAL |
3,906 | 4.66 |
RFQ |
Datasheet |
Radial | Bulk | C4AE | Active | 3.3 µF | ±5% | - | 600V | Polypropylene (PP), Metallized | 17 mOhms | -40°C ~ 85°C | Through Hole | 1.240 L x 0.433 W (31.50mm x 11.00mm) | 0.795 (20.20mm) | PC Pins | 1.083 (27.50mm) | DC Link, DC Filtering; High Frequency, Switching | - |
|
|
C4AQQLW5100A36JCAP FILM 10UF 5% 1.1KVDC RADIAL |
3,689 | 4.86 |
RFQ |
Datasheet |
Radial - 4 Leads | Bulk | C4AQ | Active | 10 µF | ±5% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 7.4 mOhms | -55°C ~ 105°C | Through Hole | 1.654 L x 1.378 W (42.00mm x 35.00mm) | 0.953 (24.20mm) | PC Pins | 1.476 (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 |
|
C4AQQBW5120A3FJCAP FILM 12UF 5% 1.1KVDC RADIAL |
3,180 | 4.89 |
RFQ |
Datasheet |
Radial - 4 Leads | Bulk | C4AQ | Active | 12 µF | ±5% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 6.3 mOhms | -40°C ~ 105°C | Through Hole | 1.654 L x 0.787 W (42.00mm x 20.00mm) | 1.583 (40.20mm) | PC Pins | 1.476 (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 |
|
PHE820MF7100MR06L2CAP FILM 1UF 20% 275VAC RADIAL |
2,182 | 4.93 |
RFQ |
Datasheet |
Radial | Bulk | PHE820 | Active | 1 µF | ±20% | 275V | - | Polyester, Metallized | - | -40°C ~ 100°C | Through Hole | 1.240 L x 0.689 W (31.50mm x 17.50mm) | 1.102 (28.00mm) | PC Pins | 1.083 (27.50mm) | EMI, RFI Suppression | X2 |
|
R60MR51005040KCAP FILM 10UF 10% 400VDC RADIAL |
3,368 | 4.93 |
RFQ |
Datasheet |
Radial | Tray | R60 | Active | 10 µF | ±10% | 200V | 400V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 1.260 L x 0.866 W (32.00mm x 22.00mm) | 1.461 (37.10mm) | PC Pins | 1.083 (27.50mm) | General Purpose | - |
|
|
C4AQIBU5125A12JCAP FILM 12.5UF 5% 800VDC RADIAL |
2,296 | 4.93 |
RFQ |
Datasheet |
Radial | Bulk | C4AQ | Active | 12.5 µF | ±5% | - | 800V | Polypropylene (PP), Metallized | 5.5 mOhms | -40°C ~ 105°C | Through Hole | 1.240 L x 0.866 W (31.50mm x 22.00mm) | 1.465 (37.20mm) | PC Pins | 1.083 (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 |
