Upload BOM| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

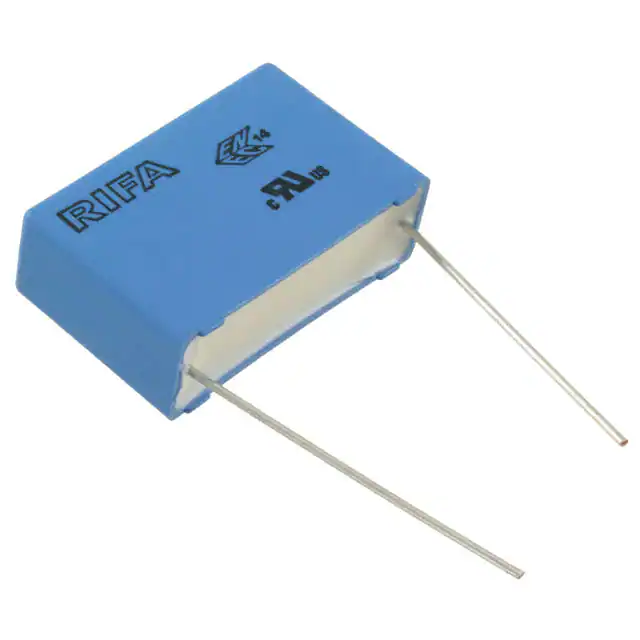

PHE845VF6220MR30L2CAP FILM 0.22UF 20% 1.5KVDC RAD |
3,121 | 3.80 |
RFQ |
Datasheet |
Radial | Tray | PHE845 | Active | 0.22 µF | ±20% | 760V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.240 L x 0.531 W (31.50mm x 13.50mm) | 0.906 (23.00mm) | PC Pins | 1.083 (27.50mm) | EMI, RFI Suppression | X1 |
|
C274AC34500AA0JCAP FILM 5UF 5% 470VAC RADIAL |
2,913 | 3.85 |
RFQ |
Datasheet |
Radial, Can | Bulk | C274 | Active | 5 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.181 Dia (30.00mm) | 2.303 (58.50mm) | Quick Connect - 0.250 (6.3mm) | 0.528 (13.40mm) | Motor Run; Motor Start | - |
|
R76QR34704030JCAP FILM 0.47UF 5% 1KVDC RADIAL |
3,820 | 3.86 |
RFQ |
Datasheet |
Radial | Tray | R76 | Active | 0.47 µF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.260 L x 0.709 W (32.00mm x 18.00mm) | 1.303 (33.10mm) | PC Pins | 1.083 (27.50mm) | High Frequency, Switching; High Pulse, DV/DT | - |
|
R46KR447050P1MCAP FILM 4.7UF 20% 560VDC RAD |
2,765 | 3.86 |
RFQ |
Datasheet |
Radial | Bulk | R46 | Active | 4.7 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260 L x 0.551 W (32.00mm x 14.00mm) | 1.106 (28.10mm) | PC Pins | 1.083 (27.50mm) | EMI, RFI Suppression | X2 |
|
C4AF3BU4150A11KCAP FILM 1.5UF 10% 400VAC RADIAL |
2,363 | 3.91 |
RFQ |
Datasheet |
Radial | Bulk | C4AF | Active | 1.5 µF | ±10% | 400V | - | Polypropylene (PP), Metallized | 5.8 mOhms | -55°C ~ 105°C | Through Hole | 1.240 L x 0.748 W (31.50mm x 19.00mm) | 1.150 (29.20mm) | PC Pins | 1.083 (27.50mm) | Automotive | AEC-Q200 |
|
C4AQLBU5125A1YKCAP FILM 12.5UF 10% 500VDC RAD |
3,523 | 3.92 |
RFQ |
Datasheet |
Radial | Bulk | C4AQ | Active | 12.5 µF | ±10% | - | 500V | Polypropylene (PP), Metallized | 6.8 mOhms | -40°C ~ 105°C | Through Hole | 1.240 L x 0.551 W (31.50mm x 14.00mm) | 1.110 (28.20mm) | PC Pins | 1.083 (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 |
|
R474R410050A1MCAP FILM 1UF 20% 1KVDC RADIAL |
2,526 | 3.93 |
RFQ |
Datasheet |
Radial | Tray | R47 | Active | 1 µF | ±20% | 440V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260 L x 0.709 W (32.00mm x 18.00mm) | 1.303 (33.10mm) | PC Pins | 1.083 (27.50mm) | Automotive; EMI, RFI Suppression | X1 |
|
PHE840EF7100KF12R06L2CAP FILM 1UF 10% 760VDC RADIAL |
2,058 | 3.94 |
RFQ |
Datasheet |
Radial | Tray | PHE840E | Active | 1 µF | ±10% | 300V | 760V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.240 L x 0.453 W (31.50mm x 11.50mm) | 0.886 (22.50mm) | PC Pins | 1.083 (27.50mm) | EMI, RFI Suppression | X2 |
|
C4AQCLW5100A33JCAP FILM 10UF 5% 650VDC RADIAL |
2,714 | 3.96 |
RFQ |
Datasheet |
Radial - 4 Leads | Bulk | C4AQ | Active | 10 µF | ±5% | - | 650V | Polypropylene (PP), Metallized | 10.4 mOhms | -55°C ~ 105°C | Through Hole | 1.634 L x 0.945 W (41.50mm x 24.00mm) | 0.756 (19.20mm) | PC Pins | 1.476 (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 |
|
R463W447000M1KCAP FILM 4.7UF 10% 630VDC RADIAL |
3,397 | 4.01 |
RFQ |
Datasheet |
Radial | Box | R46 | Active | 4.7 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.634 L x 0.748 W (41.50mm x 19.00mm) | 1.264 (32.10mm) | PC Pins | 1.476 (37.50mm) | EMI, RFI Suppression | X2 |
|
|
C4AQSLW4300A33JCAP FILM 3UF 5% 1.5KVDC RADIAL |
3,233 | 4.04 |
RFQ |
Datasheet |
Radial - 4 Leads | Bulk | C4AQ | Active | 3 µF | ±5% | - | 1500V (1.5kV) | Polypropylene (PP), Metallized | 18.5 mOhms | -55°C ~ 105°C | Through Hole | 1.634 L x 0.945 W (41.50mm x 24.00mm) | 0.756 (19.20mm) | PC Pins | 1.476 (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 |
|
R475R41005001KCAP FILM 1UF 10% 1KVDC RADIAL |
384 | 4.05 |
RFQ |
Datasheet |
Radial | Tray | R47 | Active | 1 µF | ±10% | 520V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 85°C | Through Hole | 1.260 L x 0.709 W (32.00mm x 18.00mm) | 1.303 (33.10mm) | PC Pins | 1.083 (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 |
|
|
C4AQQBU4800A12JCAP FILM 8UF 5% 1.1KVDC RADIAL |
3,550 | 4.06 |
RFQ |
Datasheet |
Radial | Bulk | C4AQ | Active | 8 µF | ±5% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 6.6 mOhms | -40°C ~ 105°C | Through Hole | 1.240 L x 0.866 W (31.50mm x 22.00mm) | 1.465 (37.20mm) | PC Pins | 1.083 (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 |
|
R474R41005001KCAP FILM 1UF 10% 1KVDC RADIAL |
3,704 | 4.07 |
RFQ |
Datasheet |
Radial | Tray | R47 | Active | 1 µF | ±10% | 440V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260 L x 0.709 W (32.00mm x 18.00mm) | 1.303 (33.10mm) | PC Pins | 1.083 (27.50mm) | EMI, RFI Suppression | X2 |
|
|
R46KR447000P1MCAP FILM 4.7UF 20% 560VDC RADIAL |
3,460 | 4.10 |
RFQ |
Datasheet |
Radial | Tray | R46 | Active | 4.7 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260 L x 0.551 W (32.00mm x 14.00mm) | 1.106 (28.10mm) | PC Pins | 1.083 (27.50mm) | EMI, RFI Suppression | X2 |
|
C4GAFUB4100AA0JCAP FILM 1UF 5% 400VDC AXIAL |
3,463 | 4.11 |
RFQ |
Datasheet |
Axial | Bulk | C4G | Active | 1 µF | ±5% | 250V | 400V | Polypropylene (PP), Metallized | 8.3 mOhms | -40°C ~ 85°C | Through Hole | 0.472 Dia x 1.299 L (12.00mm x 33.00mm) | - | PC Pins | - | High Frequency, Switching | - |
|
C4AEOBU4150A1WJCAP FILM 1.5UF 5% 900VDC RADIAL |
2,687 | 4.14 |
RFQ |
Datasheet |
Radial | Bulk | C4AE | Active | 1.5 µF | ±5% | - | 900V | Polypropylene (PP), Metallized | 26.3 mOhms | -40°C ~ 85°C | Through Hole | 1.240 L x 0.433 W (31.50mm x 11.00mm) | 0.795 (20.20mm) | PC Pins | 1.083 (27.50mm) | DC Link, DC Filtering; High Frequency, Switching | - |
|
R75TR327050H3JCAP FILM 0.27UF 5% 1.6KVDC RAD |
3,441 | 4.23 |
RFQ |
Datasheet |
Radial | Tray | R75H | Active | 0.27 µF | ±5% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | 10 mOhms | -55°C ~ 125°C | Through Hole | 1.260 L x 0.709 W (32.00mm x 18.00mm) | 1.303 (33.10mm) | PC Pins | 1.083 (27.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 |
|
PME271MD6330KR30CAP FILM 0.33UF 10% 630VDC RAD |
2,215 | 4.32 |
RFQ |
Datasheet |
Radial | Bulk | PME271M | Active | 0.33 µF | ±10% | 275V | 630V | Paper, Metallized | - | -40°C ~ 110°C | Through Hole | 1.063 L x 0.472 W (27.00mm x 12.00mm) | 0.866 (22.00mm) | PC Pins | 0.886 (22.50mm) | EMI, RFI Suppression | X2 |
|
PHE426HF7330JR06L2CAP FILM 3.3UF 5% 250VDC RAD |
3,295 | 4.34 |
RFQ |
Datasheet |
Radial | Tray | PHE426 | Active | 3.3 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.240 L x 0.453 W (31.50mm x 11.50mm) | 0.886 (22.50mm) | PC Pins | 1.083 (27.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - |
