Upload BOM| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
206K050CS4GCAP FILM 20UF 50VDC 18DIP |
208 | 81.45 |
RFQ |
18-SMD, Gull Wing | Tube | Capstick® CS | Active | 20 µF | ±10% | - | 50V | Polyester, Metallized | 2.5 mOhms | -55°C ~ 125°C | Surface Mount | 1.150 L x 0.500 W (29.20mm x 12.70mm) | 0.379 (9.62mm) | Gull Wing | 0.394 (10.00mm) | DC Link, DC Filtering; High Frequency, Switching | - | |
|
SCRN243R-FCAP FILM 3UF 10% 1.5KVPK RADIAL |
2,375 | 100.13 |
RFQ |
Datasheet |
Radial, Can | Bulk | SCR | Active | 3 µF | ±10% | 1500Vpk (1.5KVPK) | - | Paper, Metallized | - | -40°C ~ 80°C | Chassis Mount, Requires Holder/Bracket | 2.910 L x 1.910 W (73.91mm x 48.51mm), Lip | 4.310 (109.47mm) | Threaded, Male | 1.380 (35.05mm) | Commutation; High Frequency, Switching; High Pulse, DV/DT | - |
|
947D261K112BDMSNCAP FILM 260UF 10% 1.1KVDC RAD |
2,781 | 100.33 |
RFQ |
Datasheet |
Radial, Can | Bulk | 947D | Active | 260 µF | ±10% | 230V | 1100V (1.1kV) | Polypropylene (PP), Metallized | 1.5 mOhms | -45°C ~ 85°C | Chassis, Stud Mount | 3.543 Dia (90.00mm) | 3.465 (88.00mm) | Threaded, Female | 1.772 (45.00mm) | DC Link, DC Filtering | - |
|
FCP0805H222J-J1CAP FILM 2200PF 5% 50VDC 0805 |
3,138 | 0.83 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | FCP | Active | 2200 pF | ±5% | - | 50V | Polyphenylene Sulfide (PPS) | - | -55°C ~ 125°C | Surface Mount | 0.079 L x 0.049 W (2.00mm x 1.25mm) | 0.043 (1.09mm) | Solder Pads | - | High Frequency, Switching | - |
|
|
FCP0805H471J-J1CAP FILM 470PF 5% 50VDC 0805 |
2,945 | 0.83 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | FCP | Active | 470 pF | ±5% | - | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.079 L x 0.049 W (2.00mm x 1.25mm) | 0.043 (1.09mm) | Solder Pads | - | High Frequency, Switching | - |
|
DME2P12K-FCAP FILM 0.12UF 10% 250VDC RAD |
2,542 | 1.15 |
RFQ |
Datasheet |
Radial | Bulk | DME | Active | 0.12 µF | ±10% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.406 L x 0.236 W (10.30mm x 6.00mm) | 0.354 (9.00mm) | PC Pins | 0.295 (7.50mm) | General Purpose | - |
|
FCP1206H103G-H2CAP FILM 10000PF 2% 50VDC 1206 |
2,990 | 0.89 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | FCP | Active | 10000 pF | ±2% | - | 50V | Polyphenylene Sulfide (PPS) | - | -55°C ~ 125°C | Surface Mount | 0.126 L x 0.063 W (3.20mm x 1.60mm) | 0.051 (1.30mm) | Solder Pads | - | High Frequency, Switching | - |
|
|
FCP1206C333J-H2CAP FILM 0.033UF 5% 16VDC 1206 |
4,585 | 1.01 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | FCP | Active | 0.033 µF | ±5% | - | 16V | Polyphenylene Sulfide (PPS) | - | -55°C ~ 125°C | Surface Mount | 0.126 L x 0.063 W (3.20mm x 1.60mm) | 0.051 (1.30mm) | Solder Pads | - | High Frequency, Switching | - |
|

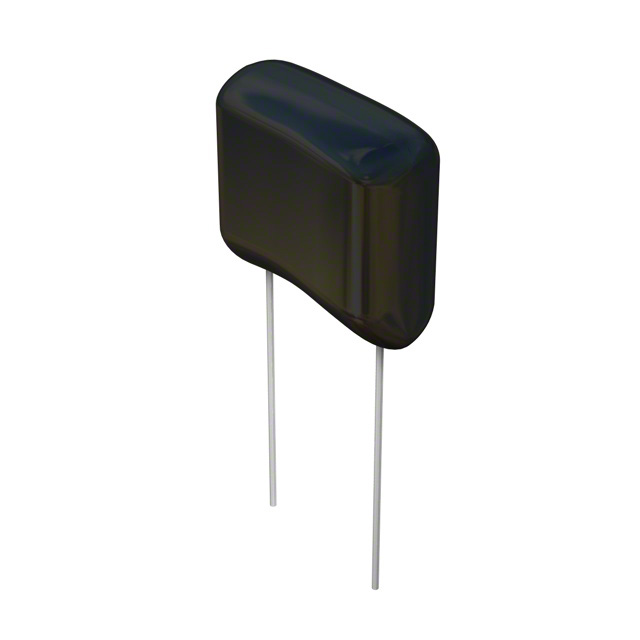

DME10S68K-FCAP FILM 0.068UF 10% 1KVDC RAD |
2,765 | 1.12 |
RFQ |
Datasheet |
Radial | Bulk | DME | Active | 0.068 µF | ±10% | 250V | 1000V (1kV) | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.827 L x 0.335 W (21.00mm x 8.50mm) | 0.768 (19.50mm) | PC Pins | 0.689 (17.50mm) | General Purpose | - |
|
WMF05P68K-FCAP FILM 0.68UF 10% 50VDC AXIAL |
2,866 | 1.48 |
RFQ |
Datasheet |
Axial | Bulk | WMF | Active | 0.68 µF | ±10% | 35V | 50V | Polyester | - | -55°C ~ 125°C | Through Hole | 0.524 Dia x 1.063 L (13.30mm x 27.00mm) | - | PC Pins | - | General Purpose | - |
|

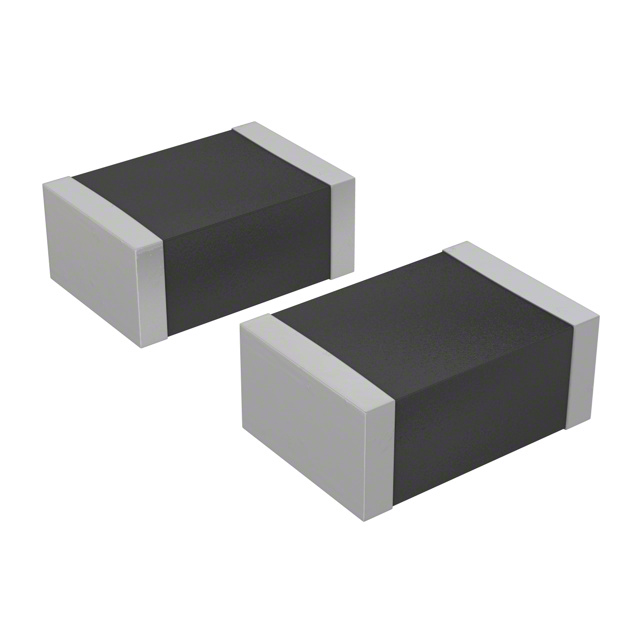

FCP2416H224G-D4CAP FILM 0.22UF 2% 50VDC 2416 |
1,460 | 3.04 |
RFQ |
Datasheet |
2416 (6041 Metric) | Tape & Reel (TR),Cut Tape (CT) | FCP | Active | 0.22 µF | ±2% | - | 50V | Polyphenylene Sulfide (PPS) | - | -55°C ~ 125°C | Surface Mount | 0.236 L x 0.161 W (6.00mm x 4.10mm) | 0.110 (2.80mm) | Solder Pads | - | High Frequency, Switching | - |
|
RA4474K250-FACAP FILM 0.47UF 10% 250VDC RAD |
3,284 | 3.13 |
RFQ |
Datasheet |
Radial | Bulk | Angstor® RA | Active | 0.47 µF | ±10% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 0.449 L x 0.209 W (11.40mm x 5.30mm) | 0.303 (7.70mm) | PC Pins | 0.394 (10.00mm) | High Frequency, Switching; High Pulse, DV/DT; EMI, RFI Suppression | - |
|

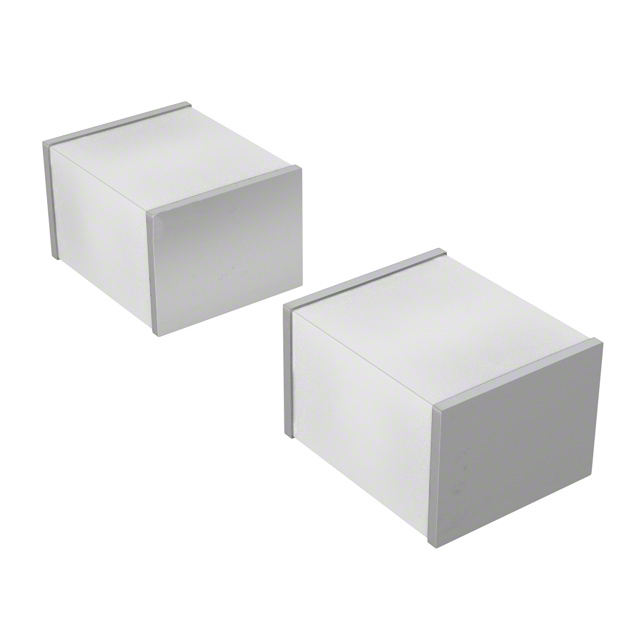

FCN2420G273J-BCAP FILM 0.027UF 5% 400VDC 2420 |
1,059 | 2.80 |
RFQ |
Datasheet |
2420 (6050 Metric) | Tape & Reel (TR),Cut Tape (CT) | FCN | Active | 0.027 µF | ±5% | - | 400V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -40°C ~ 85°C | Surface Mount | 0.236 L x 0.197 W (6.00mm x 5.00mm) | 0.130 (3.30mm) | Solder Pads | - | General Purpose | - |
|

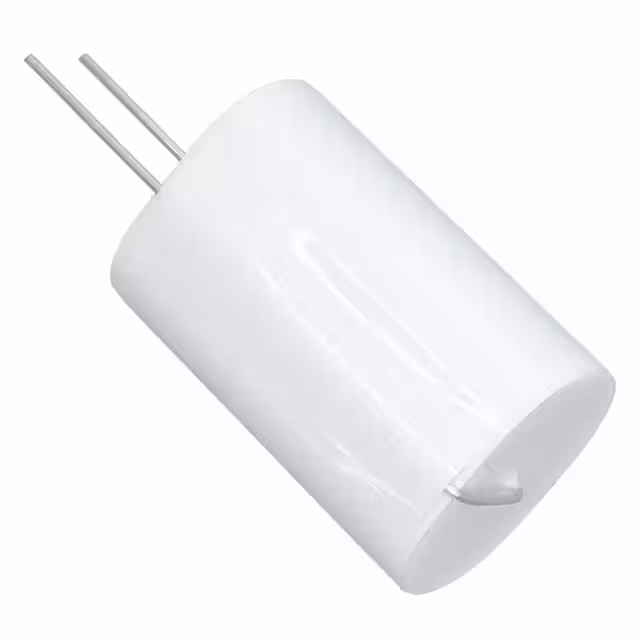

935C4W3-2K-FCAP FILM 10% 400VDC AXIAL |
1,000 | 3.32 |
RFQ |
Datasheet |
Axial | Bulk | 935C | Active | - | ±10% | 250V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.961 Dia x 1.748 L (24.40mm x 44.40mm) | - | PC Pins | - | High Frequency, Switching | - |
|
|
950CQW5H-FCAP FILM 5UF 6% 250VAC AXIAL |
300 | 4.32 |
RFQ |
Datasheet |
Axial | Bulk | 950 | Active | 5 µF | ±6% | 250V | - | Polypropylene (PP), Metallized | - | -55°C ~ 90°C | Through Hole | 0.906 Dia x 1.752 L (23.00mm x 44.50mm) | - | PC Pins | - | Motor Run | - |
|
930C2P1K-FCAP FILM 0.1UF 10% 250VDC AXIAL |
154 | 4.63 |
RFQ |
Datasheet |
Axial | Bulk | 930C | Active | 0.1 µF | ±10% | 175V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.315 Dia x 0.748 L (8.00mm x 19.00mm) | - | PC Pins | - | General Purpose | - |
|

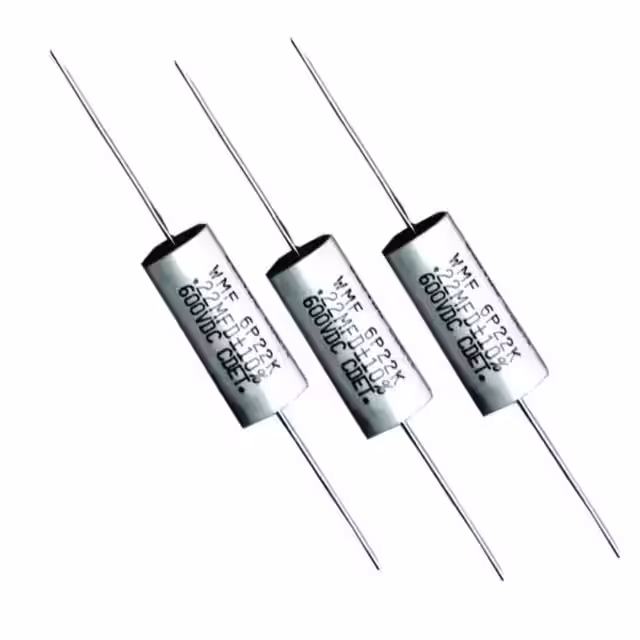

WMF6S33KCAP FILM 0.033 MFD 600VDC AXIAL |
989 | 1.49 |
RFQ |
- | Box | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
MMWA05PIK-FMMWA05PIK-F |
1,000 | 1.62 |
RFQ |
- | Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
SCRN248R-FCAP FILM 1UF 10% 2KVPK RADIAL |
3,861 | 75.92 |
RFQ |
Datasheet |
Radial, Can | Bulk | SCR | Active | 1 µF | ±10% | 2000Vpk (2KVPK) | - | Paper, Metallized | - | -40°C ~ 80°C | Chassis Mount, Requires Holder/Bracket | 2.160 L x 1.310 W (54.86mm x 33.27mm), Lip | 3.190 (81.03mm) | Threaded, Male | 0.810 (20.57mm) | Commutation; High Frequency, Switching; High Pulse, DV/DT | - |
|
947D152K901DLRSNCAP FILM 1500UF 10% 900VDC RAD |
2,980 | 208.15 |
RFQ |
Datasheet |
Radial, Can | Bulk | 947D | Active | 1500 µF | ±10% | 230V | 900V | Polypropylene (PP), Metallized | 1.6 mOhms | -45°C ~ 85°C | Chassis, Stud Mount | 4.567 Dia (116.00mm) | 6.417 (163.00mm) | Threaded, Female | 1.969 (50.00mm) | DC Link, DC Filtering | - |
