Upload BOM| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DPP6D1K-FCAP FILM 1000PF 10% 630VDC RAD |
308 | 1.04 |
RFQ |
Datasheet |
Radial | Bulk | DPP | Active | 1000 pF | ±10% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.591 L x 0.256 W (15.00mm x 6.50mm) | 0.610 (15.50mm) | PC Pins | 0.394 (10.00mm) | High Frequency, Switching | - |
|

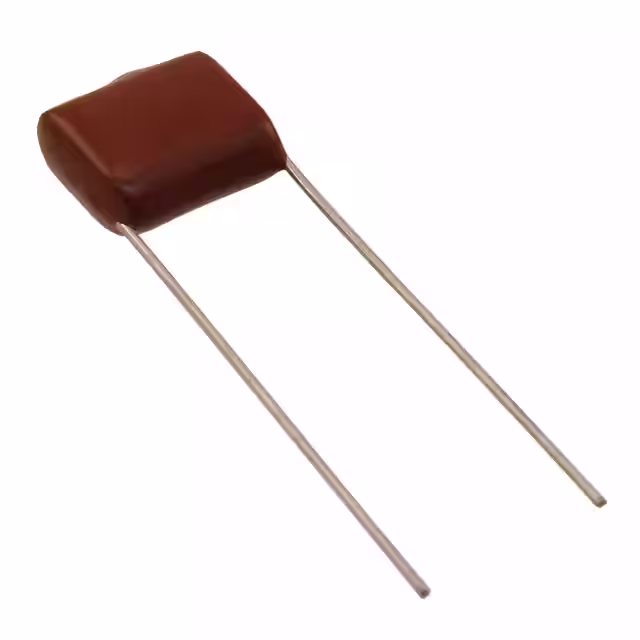

DME6S47K-FCAP FILM 0.047UF 10% 630VDC RAD |
620 | 1.30 |
RFQ |
Datasheet |
Radial | Bulk | DME | Active | 0.047 µF | ±10% | 250V | 630V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.492 L x 0.276 W (12.50mm x 7.00mm) | 0.591 (15.00mm) | PC Pins | 0.394 (10.00mm) | General Purpose | - |
|
WMF1D5K-FCAP FILM 5000PF 10% 100VDC AXIAL |
2,250 | 2.40 |
RFQ |
Datasheet |
Axial | Bulk | WMF | Active | 5000 pF | ±10% | 65V | 100V | Polyester | - | -55°C ~ 125°C | Through Hole | 0.189 Dia x 0.563 L (4.80mm x 14.30mm) | - | PC Pins | - | General Purpose | - |
|
150224J400FECAP FILM 0.22UF 5% 400VDC AXIAL |
314 | 2.51 |
RFQ |
Datasheet |
Axial | Bulk | 150 | Active | 0.22 µF | ±5% | 200V | 400V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.335 Dia x 1.102 L (8.50mm x 28.00mm) | - | PC Pins | - | General Purpose | - |
|
150473J250BBCAP FILM 0.047UF 5% 250VDC AXIAL |
711 | 1.50 |
RFQ |
Datasheet |
Axial | Bulk | 150 | Active | 0.047 µF | ±5% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.236 Dia x 0.650 L (6.00mm x 16.50mm) | - | PC Pins | - | General Purpose | - |
|

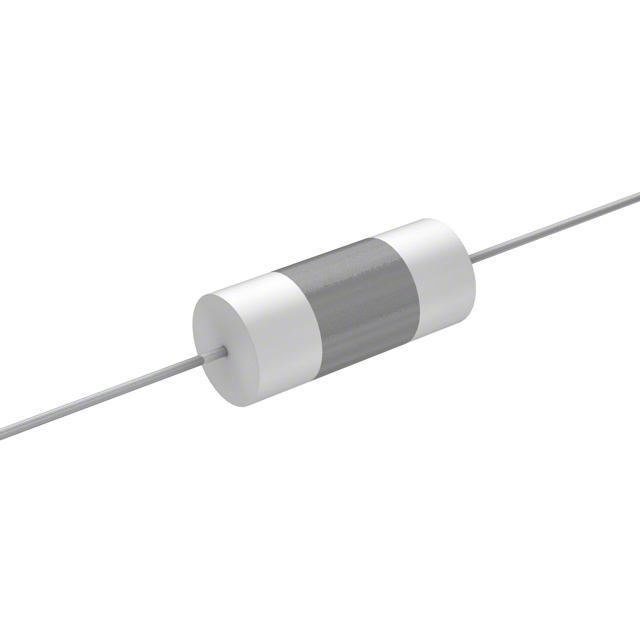

150473K400DBCAP FILM 0.047UF 400VDC AXIAL |
284 | 1.79 |
RFQ |
Datasheet |
Axial | Bulk | 150 | Active | 0.047 µF | ±10% | 200V | 400V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.276 Dia x 0.650 L (7.00mm x 16.50mm) | - | PC Pins | - | General Purpose | - |
|
|
150223K630DBCAP FILM 0.022UF 630VDC AXIAL |
252 | 1.79 |
RFQ |
Datasheet |
Axial | Bulk | 150 | Active | 0.022 µF | ±10% | 220V | 630V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.276 Dia x 0.650 L (7.00mm x 16.50mm) | - | PC Pins | - | General Purpose | - |
|
716P47351NA3CAP FILM 0.047UF 5% 100VDC RAD |
235 | 2.31 |
RFQ |
Datasheet |
Radial | Bulk | Orange Drop® 716P | Active | 0.047 µF | ±5% | 70V | 100V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.571 L x 0.339 W (14.50mm x 8.60mm) | 0.831 (21.10mm) | PC Pins | 0.394 (10.00mm) | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
|
|
715P10396KA3CAP FILM 10000PF 10% 600VDC RAD |
157 | 2.31 |
RFQ |
Datasheet |
Radial | Bulk | Orange Drop® 715P | Active | 10000 pF | ±10% | 200V | 600V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.358 Dia x 0.902 L (9.10mm x 22.90mm) | 0.654 (16.60mm) | PC Pins | 0.689 (17.50mm) | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
|
|
715P22311NA3CAP FILM 0.022UF 1% 100VDC RAD |
786 | 2.62 |
RFQ |
Datasheet |
Radial | Bulk | Orange Drop® 715P | Active | 0.022 µF | ±1% | 70V | 100V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.331 Dia x 0.571 L (8.40mm x 14.50mm) | 0.642 (16.30mm) | PC Pins | 0.394 (10.00mm) | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
|
225P22291WD3CAP FILM 2200PF 10% 100VDC RAD |
799 | 2.64 |
RFQ |
Datasheet |
Radial | Bulk | Orange Drop® 225P | Active | 2200 pF | ±10% | 70V | 100V | Polyester | - | -55°C ~ 85°C | Through Hole | 0.700 L x 0.252 W (17.78mm x 6.40mm) | 0.350 (8.90mm) | PC Pins | 0.375 (9.52mm) | Audio; DC Link, DC Filtering | - |
|
DME6P33K-FCAP FILM 0.33UF 10% 630VDC RAD |
707 | 2.92 |
RFQ |
Datasheet |
Radial | Bulk | DME | Active | 0.33 µF | ±10% | 250V | 630V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 1.024 L x 0.315 W (26.00mm x 8.00mm) | 0.748 (19.00mm) | PC Pins | 0.886 (22.50mm) | General Purpose | - |
|
|
418P10496LB3CAP FILM 0.1UF 10% 600VDC RADIAL |
198 | 3.17 |
RFQ |
Datasheet |
Radial | Bulk | Orange Drop® 418P | Active | 0.1 µF | ±10% | - | 600V | Polyester | - | -55°C ~ 85°C | Through Hole | 0.650 Dia x 1.201 L (16.50mm x 30.50mm) | 0.886 (22.50mm) | PC Pins | 0.969 (24.60mm) | Audio | - |
|
|
225P56291WD3CAP FILM 5600PF 10% 100VDC RAD |
728 | 3.19 |
RFQ |
Datasheet |
Radial | Bulk | Orange Drop® 225P | Active | 5600 pF | ±10% | 70V | 100V | Polyester | - | -55°C ~ 85°C | Through Hole | 0.700 L x 0.252 W (17.78mm x 6.40mm) | 0.350 (8.90mm) | PC Pins | 0.375 (9.52mm) | Audio; DC Link, DC Filtering | - |
|
158X224KCAP FILM 0.22UF 10% 275VAC RAD |
966 | 3.22 |
RFQ |
Datasheet |
Radial | Bulk | 158X | Active | 0.22 µF | ±10% | 275V | - | Polyester, Metallized | - | -40°C ~ 100°C | Through Hole | 0.984 L x 0.315 W (25.00mm x 8.00mm) | 0.709 (18.00mm) | PC Pins | 0.886 (22.50mm) | EMI, RFI Suppression | X2 |
|

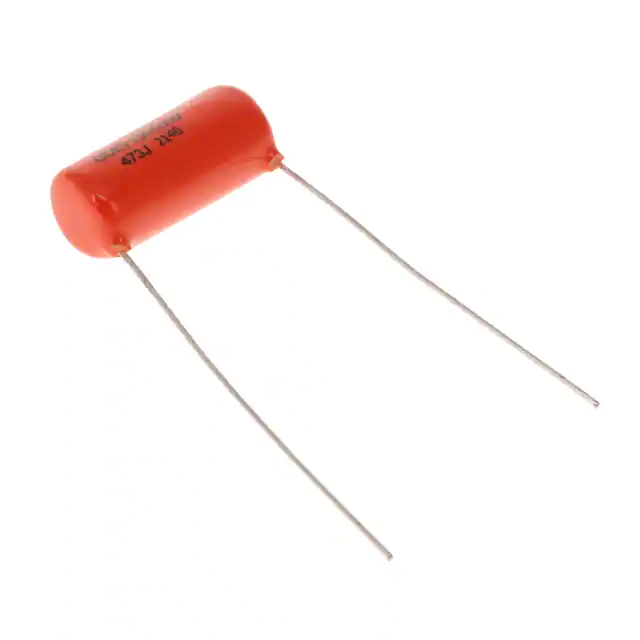

715P47356LA3CAP FILM 0.047UF 5% 600VDC RAD |
950 | 3.25 |
RFQ |
Datasheet |
Radial | Bulk | Orange Drop® 715P | Active | 0.047 µF | ±5% | 200V | 600V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.520 Dia x 1.252 L (13.20mm x 31.80mm) | 0.811 (20.60mm) | PC Pins | 1.031 (26.20mm) | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
|
715P15356KD3CAP FILM 0.015UF 5% 600VDC RAD |
507 | 3.32 |
RFQ |
Datasheet |
Radial | Bulk | Orange Drop® 715P | Active | 0.015 µF | ±5% | 200V | 600V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.421 Dia x 0.902 L (10.70mm x 22.90mm) | 0.713 (18.10mm) | PC Pins | 0.374 (9.50mm) | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
|
|
225P22391WD3CAP FILM 0.022UF 10% 100VDC RAD |
831 | 3.60 |
RFQ |
Datasheet |
Radial | Bulk | Orange Drop® 225P | Active | 0.022 µF | ±10% | 70V | 100V | Polyester | - | -55°C ~ 85°C | Through Hole | 0.701 L x 0.252 W (17.80mm x 6.40mm) | 0.350 (8.90mm) | PC Pins | 0.374 (9.50mm) | Audio; DC Link, DC Filtering | - |
|
225P22394XD3CAP FILM 0.022UF 10% 400VDC RAD |
725 | 3.60 |
RFQ |
Datasheet |
Radial | Bulk | Orange Drop® 225P | Active | 0.022 µF | ±10% | 200V | 400V | Polyester | - | -55°C ~ 85°C | Through Hole | 0.799 L x 0.311 W (20.30mm x 7.90mm) | 0.579 (14.70mm) | PC Pins | 0.375 (9.52mm) | Audio; DC Link, DC Filtering | - |
|
|
715P22354KD3CAP FILM 0.022UF 5% 400VDC RAD |
760 | 3.78 |
RFQ |
Datasheet |
Radial | Bulk | Orange Drop® 715P | Active | 0.022 µF | ±5% | 200V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.331 Dia x 0.902 L (8.40mm x 22.90mm) | 0.642 (16.30mm) | PC Pins | 0.375 (9.52mm) | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
