Upload BOM| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

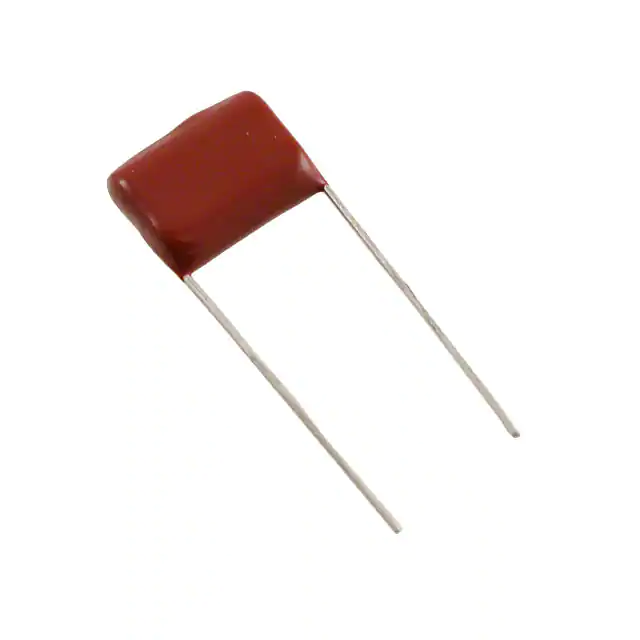

DME4P33K-FCAP FILM 0.33UF 10% 400VDC RAD |
890 | 2.03 |
RFQ |
Datasheet |
Radial | Bulk | DME | Active | 0.33 µF | ±10% | 200V | 400V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.728 L x 0.295 W (18.50mm x 7.50mm) | 0.646 (16.40mm) | PC Pins | 0.591 (15.00mm) | General Purpose | - |
|
DMT6D47K-FCAP FILM 4700PF 10% 630VDC RAD |
876 | 2.09 |
RFQ |
Datasheet |
Radial | Bulk | DMT | Active | 4700 pF | ±10% | 250V | 630V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.693 L x 0.283 W (17.60mm x 7.20mm) | 0.503 (12.77mm) | PC Pins | 0.543 (13.80mm) | General Purpose | - |
|

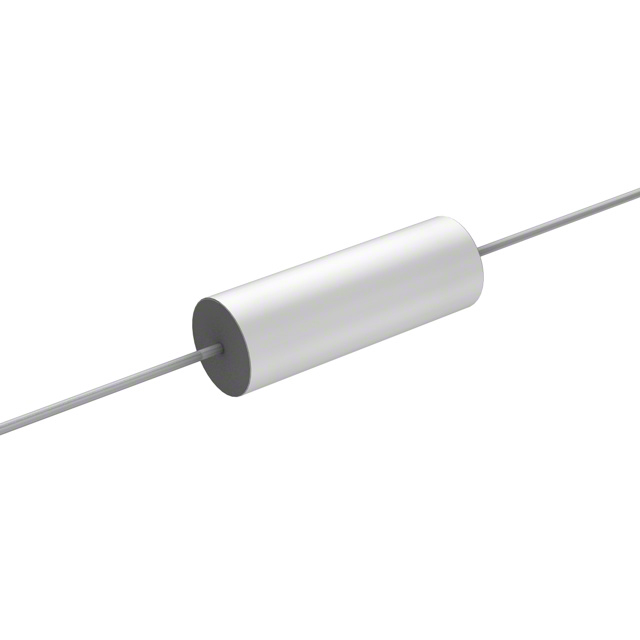

WMF2S22K-FCAP FILM 0.022UF 250VDC AXIAL |
984 | 2.40 |
RFQ |
Datasheet |
Axial | Bulk | WMF | Active | 0.022 µF | ±10% | 125V | 250V | Polyester | - | -55°C ~ 125°C | Through Hole | 0.260 Dia x 0.685 L (6.60mm x 17.40mm) | - | PC Pins | - | General Purpose | - |
|
DME4P47K-FCAP FILM 0.47UF 10% 400VDC RAD |
877 | 2.34 |
RFQ |
Datasheet |
Radial | Bulk | DME | Active | 0.47 µF | ±10% | 200V | 400V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.728 L x 0.327 W (18.50mm x 8.30mm) | 0.728 (18.50mm) | PC Pins | 0.591 (15.00mm) | General Purpose | - |
|

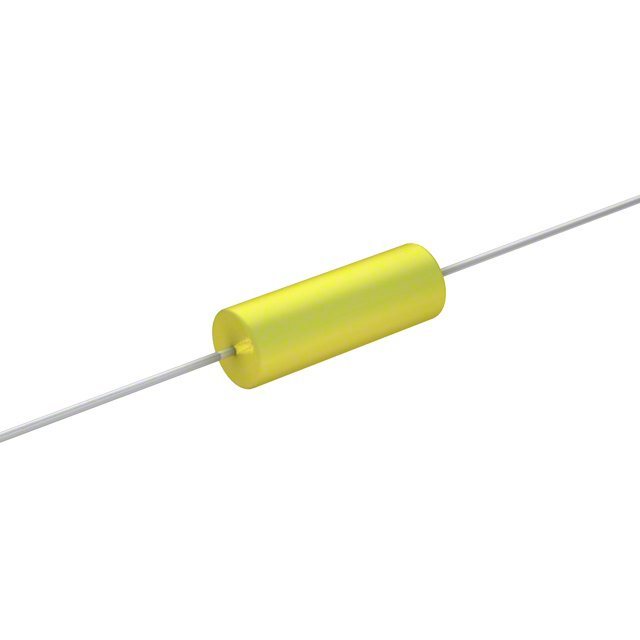

WMC08D68K-FCAP FILM 6800PF 10% 80VDC AXIAL |
722 | 2.34 |
RFQ |
Datasheet |
Axial | Bulk | WMC | Active | 6800 pF | ±10% | 50V | 80V | Polyester | - | -55°C ~ 125°C | Through Hole | 0.185 Dia x 0.406 L (4.70mm x 10.30mm) | - | PC Pins | - | High Pulse, DV/DT | - |
|
|
WMC2D1K-FCAP FILM 1000PF 10% 250VDC AXIAL |
670 | 2.34 |
RFQ |
Datasheet |
Axial | Bulk | WMC | Active | 1000 pF | ±10% | 125V | 250V | Polyester | - | -55°C ~ 125°C | Through Hole | 0.185 Dia x 0.406 L (4.70mm x 10.30mm) | - | PC Pins | - | High Pulse, DV/DT | - |
|
|
WMC08D22K-FCAP FILM 2200PF 10% 80VDC AXIAL |
3,113 | 2.34 |
RFQ |
Datasheet |
Axial | Bulk | WMC | Active | 2200 pF | ±10% | 50V | 80V | Polyester | - | -55°C ~ 125°C | Through Hole | 0.185 Dia x 0.406 L (4.70mm x 10.30mm) | - | PC Pins | - | High Pulse, DV/DT | - |
|
WMF1S1K-FCAP FILM 10000PF 100VDC AXIAL |
649 | 2.40 |
RFQ |
Datasheet |
Axial | Bulk | WMF | Active | 10000 pF | ±10% | 65V | 100V | Polyester | - | -55°C ~ 125°C | Through Hole | 0.201 Dia x 0.563 L (5.10mm x 14.30mm) | - | PC Pins | - | General Purpose | - |
|
WMF1D1K-FCAP FILM 1000PF 10% 100VDC AXIAL |
3,567 | 2.40 |
RFQ |
Datasheet |
Axial | Bulk | WMF | Active | 1000 pF | ±10% | 65V | 100V | Polyester | - | -55°C ~ 125°C | Through Hole | 0.189 Dia x 0.563 L (4.80mm x 14.30mm) | - | PC Pins | - | General Purpose | - |
|
WMC2S1K-FCAP FILM 10000PF 250VDC AXIAL |
2,080 | 2.40 |
RFQ |
Datasheet |
Axial | Bulk | WMC | Active | 10000 pF | ±10% | 125V | 250V | Polyester | - | -55°C ~ 125°C | Through Hole | 0.185 Dia x 0.531 L (4.70mm x 13.50mm) | - | PC Pins | - | High Pulse, DV/DT | - |
|

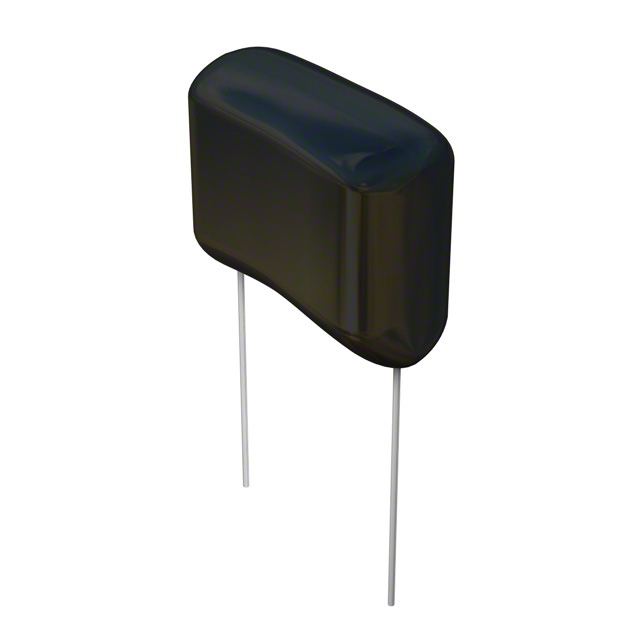

DME10P22K-FCAP FILM 0.22UF 10% 1KVDC RADIAL |
676 | 2.51 |
RFQ |
Datasheet |
Radial | Bulk | DME | Active | 0.22 µF | ±10% | 250V | 1000V (1kV) | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 1.024 L x 0.472 W (26.00mm x 12.00mm) | 0.906 (23.00mm) | PC Pins | 0.886 (22.50mm) | General Purpose | - |
|
225P68291WD3CAP FILM 6800PF 10% 100VDC RAD |
508 | 2.68 |
RFQ |
Datasheet |
Radial | Bulk | Orange Drop® 225P | Active | 6800 pF | ±10% | 70V | 100V | Polyester | - | -55°C ~ 85°C | Through Hole | 0.700 L x 0.252 W (17.78mm x 6.40mm) | 0.350 (8.90mm) | PC Pins | 0.375 (9.52mm) | Audio; DC Link, DC Filtering | - |
|
DPPM20D1K-FCAP FILM 1000PF 10% 2KVDC RADIAL |
236 | 2.71 |
RFQ |
Datasheet |
Radial | Bulk | DPPM | Active | 1000 pF | ±10% | 500V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.984 L x 0.276 W (25.00mm x 7.00mm) | 0.551 (14.00mm) | PC Pins | 0.827 (21.00mm) | High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
|
150104K400ECCAP FILM 0.1UF 10% 400VDC AXIAL |
3,620 | 2.71 |
RFQ |
Datasheet |
Axial | Bulk | 150 | Active | 0.1 µF | ±10% | 200V | 400V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.315 Dia x 0.807 L (8.00mm x 20.50mm) | - | PC Pins | - | General Purpose | - |
|
158X103CAP FILM 10000PF 20% 275VAC RAD |
2,821 | 2.71 |
RFQ |
Datasheet |
Radial | Bulk | 158X | Active | 10000 pF | ±20% | 275V | - | Polyester, Metallized | - | -40°C ~ 100°C | Through Hole | 0.669 L x 0.197 W (17.00mm x 5.00mm) | 0.492 (12.50mm) | PC Pins | 0.591 (15.00mm) | EMI, RFI Suppression | X2 |
|
|
WMC08S22K-FCAP FILM 0.022UF 10% 80VDC AXIAL |
454 | 2.75 |
RFQ |
Datasheet |
Axial | Bulk | WMC | Active | 0.022 µF | ±10% | 50V | 80V | Polyester | - | -55°C ~ 125°C | Through Hole | 0.185 Dia x 0.531 L (4.70mm x 13.50mm) | - | PC Pins | - | High Pulse, DV/DT | - |
|

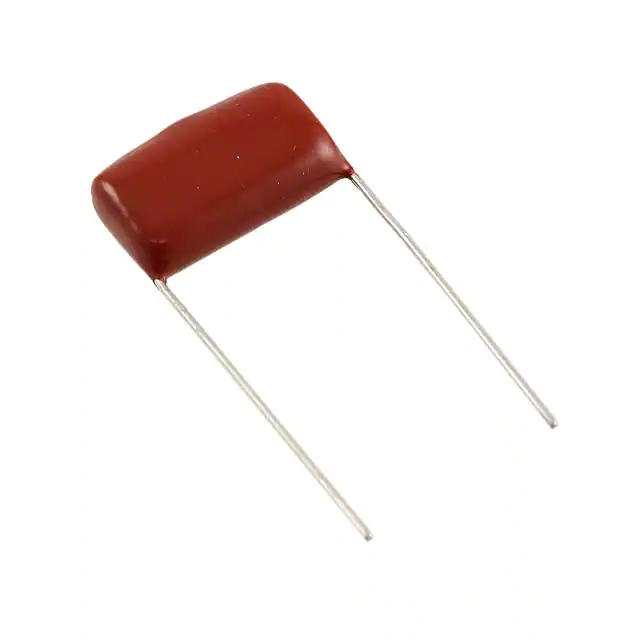

DMT2P22K-FCAP FILM 0.22UF 10% 250VDC RAD |
135 | 2.78 |
RFQ |
Datasheet |
Radial | Bulk | DMT | Active | 0.22 µF | ±10% | 125V | 250V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.945 L x 0.413 W (24.00mm x 10.50mm) | 0.724 (18.38mm) | PC Pins | 0.795 (20.20mm) | General Purpose | - |
|
|
225P47291WD3CAP FILM 4700PF 10% 100VDC RAD |
933 | 2.82 |
RFQ |
Datasheet |
Radial | Bulk | Orange Drop® 225P | Active | 4700 pF | ±10% | 70V | 100V | Polyester | - | -55°C ~ 85°C | Through Hole | 0.700 L x 0.252 W (17.78mm x 6.40mm) | 0.350 (8.90mm) | PC Pins | 0.375 (9.52mm) | Audio; DC Link, DC Filtering | - |
|
150104K630FECAP FILM 0.1UF 10% 630VDC AXIAL |
998 | 2.85 |
RFQ |
Datasheet |
Axial | Bulk | 150 | Active | 0.1 µF | ±10% | 220V | 630V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.335 Dia x 1.102 L (8.50mm x 28.00mm) | - | PC Pins | - | General Purpose | - |
|
225P15394XD3CAP FILM 0.015UF 10% 400VDC RAD |
3,322 | 2.85 |
RFQ |
Datasheet |
Radial | Bulk | Orange Drop® 225P | Active | 0.015 µF | ±10% | 200V | 400V | Polyester | - | -55°C ~ 85°C | Through Hole | 0.799 L x 0.280 W (20.30mm x 7.10mm) | 0.579 (14.70mm) | PC Pins | 0.374 (9.50mm) | Audio; DC Link, DC Filtering | - |
