Upload BOM| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
225P33291WD3CAP FILM 3300PF 10% 100VDC RAD |
604 | 2.88 |
RFQ |
Datasheet |
Radial | Bulk | Orange Drop® 225P | Active | 3300 pF | ±10% | 70V | 100V | Polyester | - | -55°C ~ 85°C | Through Hole | 0.701 L x 0.252 W (17.80mm x 6.40mm) | 0.350 (8.90mm) | PC Pins | 0.374 (9.50mm) | Audio; DC Link, DC Filtering | - |
|

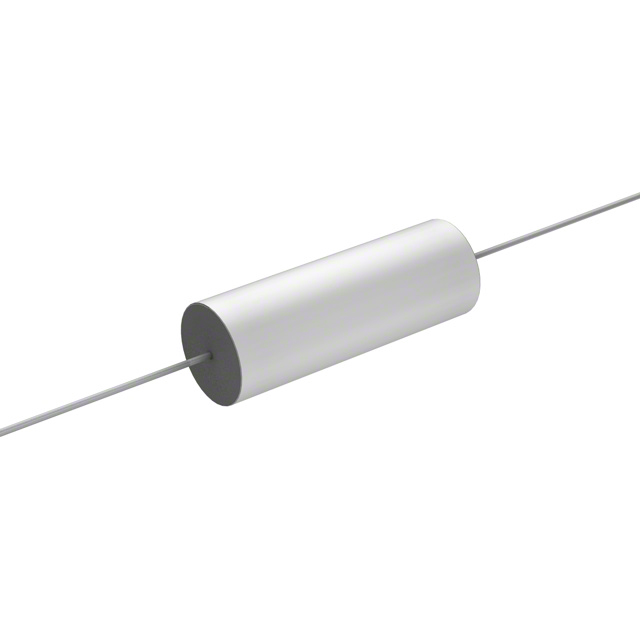

WMF1P22K-FCAP FILM 0.22UF 10% 100VDC AXIAL |
238 | 2.95 |
RFQ |
Datasheet |
Axial | Bulk | WMF | Active | 0.22 µF | ±10% | 65V | 100V | Polyester | - | -55°C ~ 125°C | Through Hole | 0.374 Dia x 1.063 L (9.50mm x 27.00mm) | - | PC Pins | - | General Purpose | - |
|
715P10354JA3CAP FILM 10000PF 5% 400VDC RAD |
137 | 3.05 |
RFQ |
Datasheet |
Radial | Bulk | Orange Drop® 715P | Active | 10000 pF | ±5% | 200V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.299 Dia x 0.701 L (7.60mm x 17.80mm) | 0.610 (15.50mm) | PC Pins | 0.500 (12.70mm) | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
|
150104J400ECCAP FILM 0.1UF 5% 400VDC AXIAL |
159 | 3.06 |
RFQ |
Datasheet |
Axial | Bulk | 150 | Active | 0.1 µF | ±5% | 200V | 400V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.315 Dia x 0.807 L (8.00mm x 20.50mm) | - | PC Pins | - | General Purpose | - |
|
WMF2D1K-FCAP FILM 1000PF 10% 250VDC AXIAL |
597 | 3.09 |
RFQ |
Datasheet |
Axial | Bulk | WMF | Active | 1000 pF | ±10% | 125V | 250V | Polyester | - | -55°C ~ 125°C | Through Hole | 0.189 Dia x 0.563 L (4.80mm x 14.30mm) | - | PC Pins | - | General Purpose | - |
|
WMF1D47K-FCAP FILM 4700PF 10% 100VDC AXIAL |
516 | 3.09 |
RFQ |
Datasheet |
Axial | Bulk | WMF | Active | 4700 pF | ±10% | 65V | 100V | Polyester | - | -55°C ~ 125°C | Through Hole | 0.197 Dia x 0.563 L (5.00mm x 14.30mm) | - | PC Pins | - | General Purpose | - |
|

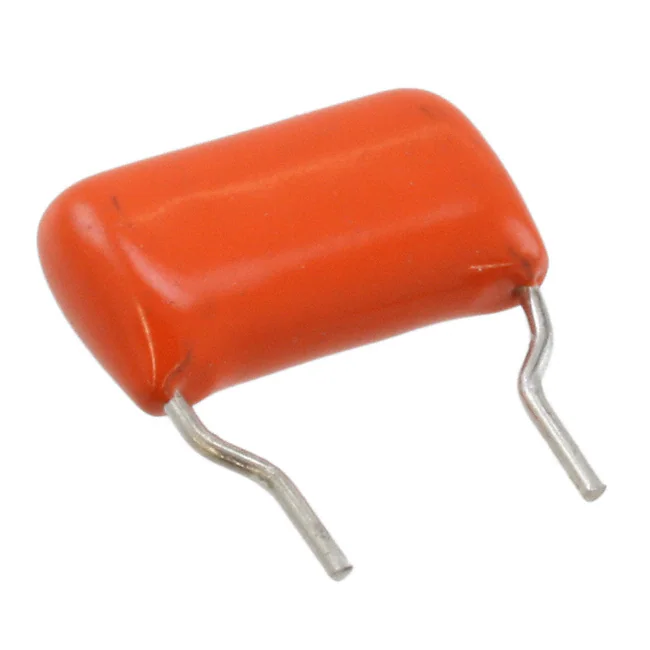

225P47391WD1CAP FILM 0.047UF 10% 100VDC RAD |
3,390 | 3.12 |
RFQ |
Datasheet |
Radial | Bulk | Orange Drop® 225P | Active | 0.047 µF | ±10% | 70V | 100V | Polyester | - | -55°C ~ 85°C | Through Hole | 0.701 L x 0.299 W (17.80mm x 7.60mm) | 0.421 (10.70mm) | PC Pins | 0.375 (9.52mm) | Audio; DC Link, DC Filtering | - |
|
715P68352KD3CAP FILM 0.068UF 5% 200VDC RAD |
752 | 3.13 |
RFQ |
Datasheet |
Radial | Bulk | Orange Drop® 715P | Active | 0.068 µF | ±5% | 155V | 200V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.390 Dia x 0.902 L (9.90mm x 22.90mm) | 0.701 (17.80mm) | PC Pins | 0.374 (9.50mm) | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
|
225P68391WD3CAP FILM 0.068UF 10% 100VDC RAD |
3,292 | 3.16 |
RFQ |
Datasheet |
Radial | Bulk | Orange Drop® 225P | Active | 0.068 µF | ±10% | 70V | 100V | Polyester | - | -55°C ~ 85°C | Through Hole | 0.701 L x 0.339 W (17.80mm x 8.60mm) | 0.488 (12.40mm) | PC Pins | 0.375 (9.52mm) | Audio; DC Link, DC Filtering | - |
|
715P33256JD3CAP FILM 3300PF 5% 600VDC RADIAL |
947 | 3.19 |
RFQ |
Datasheet |
Radial | Bulk | Orange Drop® 715P | Active | 3300 pF | ±5% | 200V | 600V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.319 Dia x 0.701 L (8.10mm x 17.80mm) | 0.610 (15.50mm) | PC Pins | 0.375 (9.52mm) | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
|

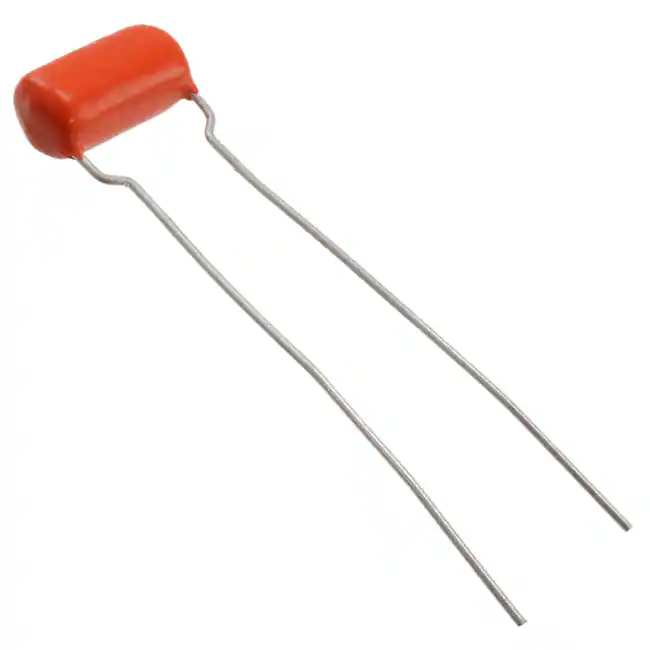

715P47254JD3CAP FILM 4700PF 5% 400VDC RADIAL |
604 | 3.19 |
RFQ |
Datasheet |
Radial | Bulk | Orange Drop® 715P | Active | 4700 pF | ±5% | 200V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.339 Dia x 0.701 L (8.60mm x 17.80mm) | 0.634 (16.10mm) | PC Pins | 0.375 (9.52mm) | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
|

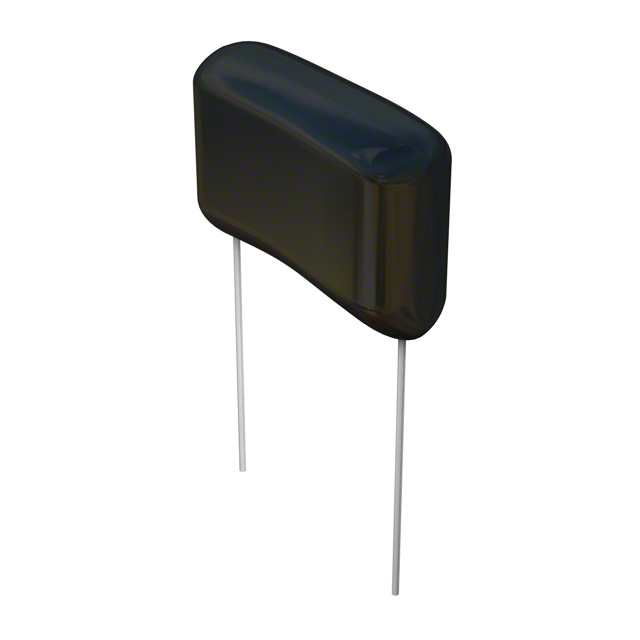

DME4W1K-FCAP FILM 1UF 10% 400VDC RADIAL |
280 | 3.19 |
RFQ |
Datasheet |
Radial | Bulk | DME | Active | 1 µF | ±10% | 200V | 400V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 1.024 L x 0.335 W (26.00mm x 8.50mm) | 0.787 (20.00mm) | PC Pins | 0.886 (22.50mm) | General Purpose | - |
|

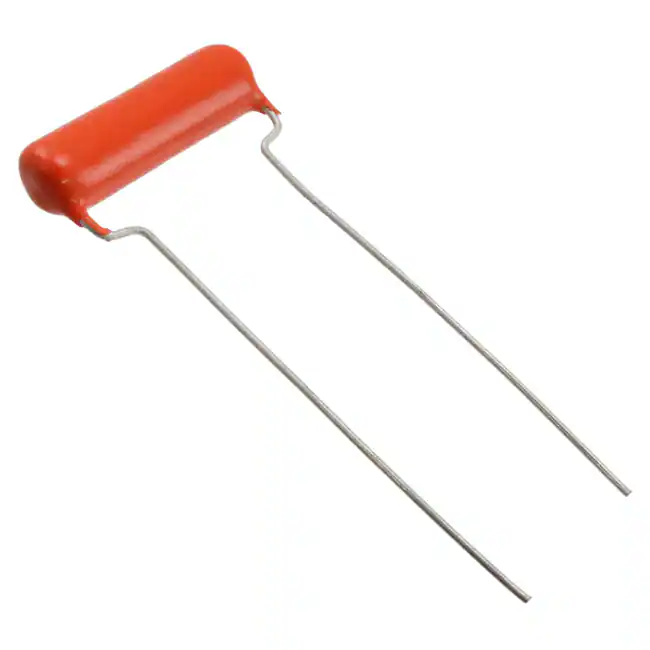

715P102516LD3CAP FILM 1000PF 5% 1.6KVDC RAD |
264 | 3.19 |
RFQ |
Datasheet |
Radial | Bulk | Orange Drop® 715P | Active | 1000 pF | ±5% | 500V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.291 Dia x 1.252 L (7.40mm x 31.80mm) | 0.583 (14.80mm) | PC Pins | 0.720 (18.30mm) | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
|

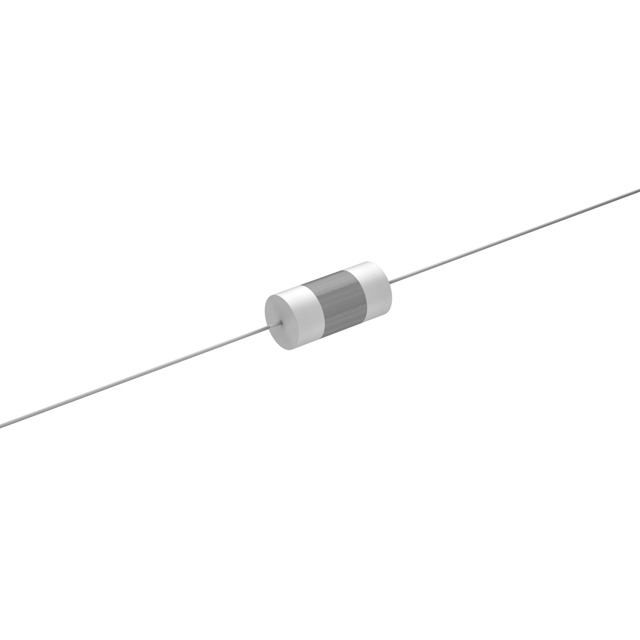

150105J100ICCAP FILM 1UF 5% 100VDC AXIAL |
254 | 3.23 |
RFQ |
Datasheet |
Axial | Bulk | 150 | Active | 1 µF | ±5% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.394 Dia x 0.807 L (10.00mm x 20.50mm) | - | PC Pins | - | General Purpose | - |
|
|
150334J250FCCAP FILM 0.33UF 5% 250VDC AXIAL |
132 | 3.23 |
RFQ |
Datasheet |
Axial | Bulk | 150 | Active | 0.33 µF | ±5% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.335 Dia x 0.807 L (8.50mm x 20.50mm) | - | PC Pins | - | General Purpose | - |
|
|
225P10294XD3CAP FILM 1000PF 10% 400VDC RAD |
975 | 3.32 |
RFQ |
Datasheet |
Radial | Bulk | Orange Drop® 225P | Active | 1000 pF | ±10% | - | 400V | Polyester | - | -55°C ~ 85°C | Through Hole | 0.799 L x 0.252 W (20.30mm x 6.40mm) | 0.551 (14.00mm) | PC Pins | 0.374 (9.50mm) | Audio; DC Link, DC Filtering | - |
|
|
225P10394XD3CAP FILM 10000PF 10% 400VDC RAD |
183 | 3.32 |
RFQ |
Datasheet |
Radial | Bulk | Orange Drop® 225P | Active | 10000 pF | ±10% | - | 400V | Polyester | - | -55°C ~ 85°C | Through Hole | 0.799 L x 0.252 W (20.30mm x 6.40mm) | 0.579 (14.70mm) | PC Pins | 0.374 (9.50mm) | Audio; DC Link, DC Filtering | - |
|
WMF6S1K-FCAP FILM 10000PF 630VDC AXIAL |
686 | 3.33 |
RFQ |
Datasheet |
Axial | Bulk | WMF | Active | 10000 pF | ±10% | 250V | 630V | Polyester | - | -55°C ~ 125°C | Through Hole | 0.291 Dia x 0.811 L (7.40mm x 20.60mm) | - | PC Pins | - | General Purpose | - |
|

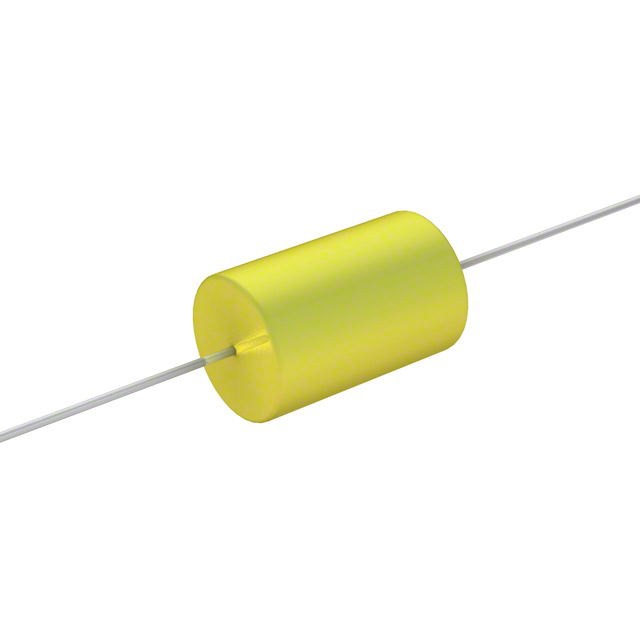

WMC08P1K-FCAP FILM 0.1UF 10% 80VDC AXIAL |
282 | 3.35 |
RFQ |
Datasheet |
Axial | Bulk | WMC | Active | 0.1 µF | ±10% | 50V | 80V | Polyester | - | -55°C ~ 125°C | Through Hole | 0.343 Dia x 0.531 L (8.70mm x 13.50mm) | - | PC Pins | - | High Pulse, DV/DT | - |
|

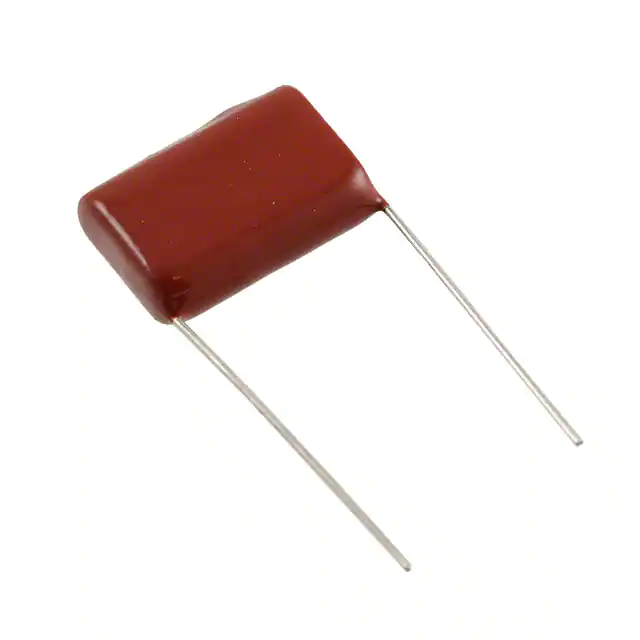

DME6P47K-FCAP FILM 0.47UF 10% 630VDC RAD |
790 | 3.37 |
RFQ |
Datasheet |
Radial | Bulk | DME | Active | 0.47 µF | ±10% | 250V | 630V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 1.024 L x 0.394 W (26.00mm x 10.00mm) | 0.787 (20.00mm) | PC Pins | 0.886 (22.50mm) | General Purpose | - |
