Upload BOM| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UNL7W20K-FCAP FILM 20UF 10% 750VDC RADIAL |
2,295 | 36.31 |
RFQ |
Datasheet |
Radial, Can | Bulk | UNL | Active | 20 µF | ±10% | - | 750V | Polypropylene (PP), Metallized | 10 mOhms | -55°C ~ 105°C | Through Hole | 1.378 Dia (35.00mm) | 2.134 (54.20mm) | PC Pins | 0.500 (12.70mm) | General Purpose | - |
|
SFS37T50K384B-FCAP FILM 50UF 10% 370VAC RADIAL |
2,051 | 37.87 |
RFQ |
Datasheet |
Radial, Can | Bulk | SF | Active | 50 µF | ±10% | 370V | - | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis Mount, Requires Holder/Bracket | 2.120 Dia (53.85mm), Lip | 3.960 (100.58mm) | Quick Connect, Disconnect | 0.810 (20.57mm) | Motor Run | - |
|
OTBH105KNPIR-FCAP FILM 1UF 10% 1.5KVDC RADIAL |
2,433 | 45.29 |
RFQ |
Datasheet |
Radial, Can | Bulk | OTB | Active | 1 µF | ±10% | 660V | 1500V (1.5kV) | Paper, Metallized | - | -55°C ~ 85°C | Chassis Mount, Requires Holder/Bracket | 2.160 L x 1.310 W (54.86mm x 33.27mm), Lip | 2.250 (57.15mm) | Solder Lug | 0.810 (20.57mm) | DC Link, DC Filtering; Motor Run | - |
|

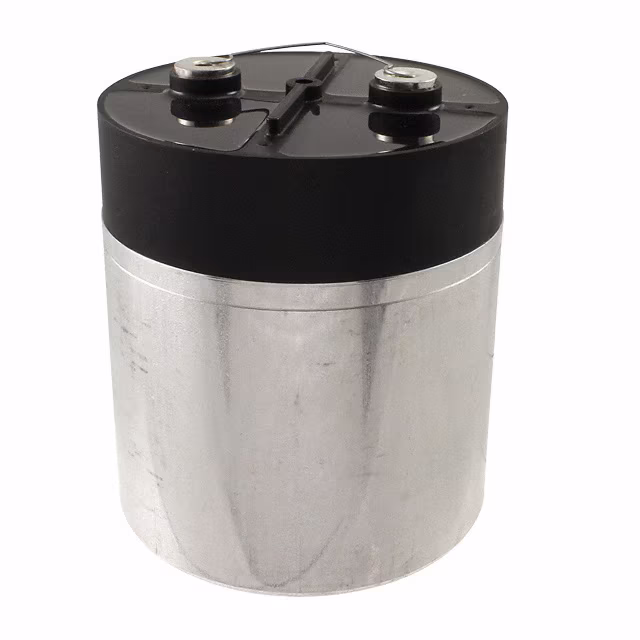

947D311K132CFRSNCAP FILM 310UF 10% 1.3KVDC RAD |
3,441 | 98.77 |
RFQ |
Datasheet |
Radial, Can | Bulk | 947D | Active | 310 µF | ±10% | 230V | 1300V (1.3kV) | Polypropylene (PP), Metallized | 2 mOhms | -45°C ~ 85°C | Chassis, Stud Mount | 3.937 Dia (100.00mm) | 4.449 (113.00mm) | Threaded, Female | 1.969 (50.00mm) | DC Link, DC Filtering | - |
|
947C601K801CCMSCAP FILM 600UF 10% 800VDC RADIAL |
2,732 | 132.54 |
RFQ |
Datasheet |
Radial, Can | Bulk | 947C | Active | 600 µF | ±10% | 230V | 800V | Polypropylene (PP), Metallized | 3.1 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 3.543 Dia (90.00mm) | 5.787 (147.00mm) | Threaded, Male | 1.772 (45.00mm) | DC Link, DC Filtering | - |
|

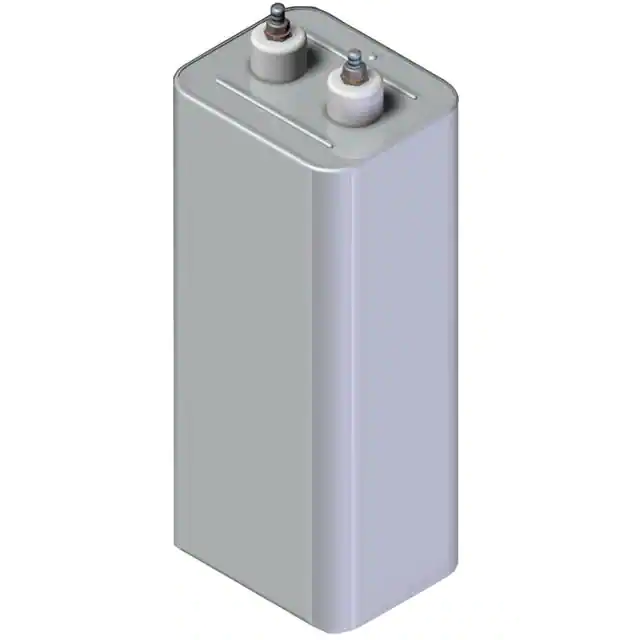

AMP0020F33SCAP FILM 230.3UF 480VAC RADIAL |
3,555 | 173.20 |
RFQ |
Datasheet |
Radial, Can - 3 Lead | Bulk | AeroPower™ AMP0 | Active | 230.3 µF | 0%, +15% | 480V | - | Polypropylene (PP), Metallized | - | -40°C ~ 46°C | Chassis Mount | 4.560 L x 3.750 W (115.82mm x 95.25mm) | 7.060 (179.32mm) | Threaded, Male | 1.000 (25.40mm) | 3 Phase, Power Factor Correction (PFC) | - |
|
MMP0100I33CAP FILM 736.8UF 600VAC RADIAL |
2,955 | 1166.49 |
RFQ |
Datasheet |
Radial, Can - 3 Lead | Bulk | AeroPower™ MMP0 | Active | 736.8 µF | 0%, +15% | 600V | - | Polypropylene (PP), Metallized | - | -40°C ~ 46°C | Chassis Mount | 13.500 L x 3.750 W (342.90mm x 95.25mm) | 24.120 (612.65mm) | Threaded, Male | 4.000 (101.60mm) | 3 Phase, Power Factor Correction (PFC) | - |
|
DME2S22K-FCAP FILM 0.022UF 10% 250VDC RAD |
475 | 0.95 |
RFQ |
Datasheet |
Radial | Bulk | DME | Active | 0.022 µF | ±10% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.406 L x 0.177 W (10.30mm x 4.50mm) | 0.354 (9.00mm) | PC Pins | 0.295 (7.50mm) | General Purpose | - |
|
DPP2S22K-FCAP FILM 0.022UF 10% 250VDC RAD |
456 | 1.04 |
RFQ |
Datasheet |
Radial | Bulk | DPP | Active | 0.022 µF | ±10% | 140V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.591 L x 0.315 W (15.00mm x 8.00mm) | 0.630 (16.00mm) | PC Pins | 0.394 (10.00mm) | High Frequency, Switching | - |
|
DME4S33K-FCAP FILM 0.033UF 10% 400VDC RAD |
600 | 1.27 |
RFQ |
Datasheet |
Radial | Bulk | DME | Active | 0.033 µF | ±10% | 200V | 400V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.406 L x 0.236 W (10.30mm x 6.00mm) | 0.413 (10.50mm) | PC Pins | 0.295 (7.50mm) | General Purpose | - |
|
167103J400A-FCAP FILM 10000PF 5% 400VDC RAD |
493 | 1.27 |
RFQ |
Datasheet |
Radial | Bulk | 167 | Active | 10000 pF | ±5% | 200V | 400V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.413 L x 0.138 W (10.50mm x 3.50mm) | 0.276 (7.00mm) | PC Pins | 0.295 (7.50mm) | General Purpose | - |
|
160224J100D-FCAP FILM 0.22UF 5% 100VDC RADIAL |
583 | 1.30 |
RFQ |
Datasheet |
Radial | Bulk | 160 | Active | 0.22 µF | ±5% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.512 L x 0.197 W (13.00mm x 5.00mm) | 0.433 (11.00mm) | PC Pins | 0.394 (10.00mm) | General Purpose | - |
|
150103K400BBCAP FILM 10000PF 400VDC AXIAL |
938 | 1.42 |
RFQ |
Datasheet |
Axial | Bulk | 150 | Active | 10000 pF | ±10% | 200V | 400V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.236 Dia x 0.650 L (6.00mm x 16.50mm) | - | PC Pins | - | General Purpose | - |
|
160272J1000C-FCAP FILM 2700PF 5% 1KVDC RADIAL |
206 | 1.46 |
RFQ |
Datasheet |
Radial | Bulk | 160 | Active | 2700 pF | ±5% | 250V | 1000V (1kV) | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.512 L x 0.157 W (13.00mm x 4.00mm) | 0.374 (9.50mm) | PC Pins | 0.394 (10.00mm) | General Purpose | - |
|

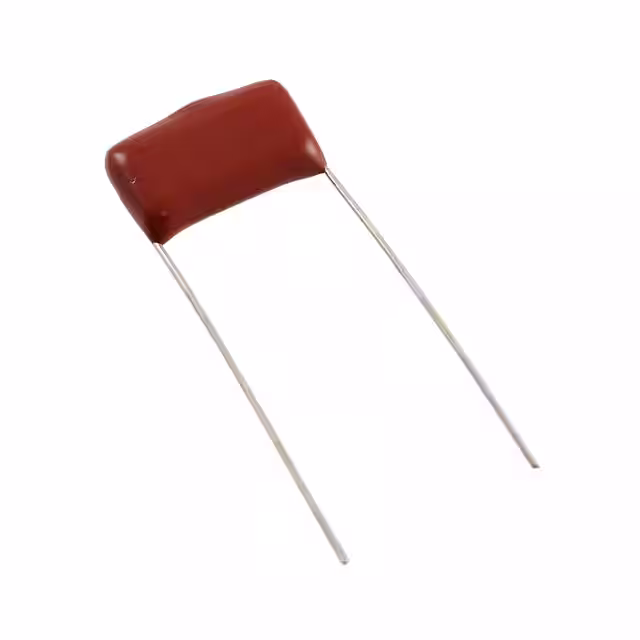

DME2P47K-FCAP FILM 0.47UF 10% 250VDC RAD |
500 | 1.69 |
RFQ |
Datasheet |
Radial | Bulk | DME | Active | 0.47 µF | ±10% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.728 L x 0.236 W (18.50mm x 6.00mm) | 0.551 (14.00mm) | PC Pins | 0.591 (15.00mm) | General Purpose | - |
|
|
167224J63A-FCAP FILM 0.22UF 5% 63VDC RADIAL |
885 | 1.75 |
RFQ |
Datasheet |
Radial | Bulk | 167 | Active | 0.22 µF | ±5% | 40V | 63V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.413 L x 0.138 W (10.50mm x 3.50mm) | 0.276 (7.00mm) | PC Pins | 0.295 (7.50mm) | General Purpose | - |
|
DPM2P1K-FCAP FILM 0.1UF 10% 250VDC RADIAL |
108 | 1.77 |
RFQ |
Datasheet |
Radial | Bulk | DPM | Active | 0.1 µF | ±10% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.512 L x 0.315 W (13.00mm x 8.00mm) | 0.551 (14.00mm) | PC Pins | 0.394 (10.00mm) | DC Link, DC Filtering; High Frequency, Switching | - |
|
DME1P68K-FCAP FILM 0.68UF 10% 100VDC RAD |
470 | 1.80 |
RFQ |
Datasheet |
Radial | Bulk | DME | Active | 0.68 µF | ±10% | 65V | 100V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.492 L x 0.236 W (12.50mm x 6.00mm) | 0.528 (13.40mm) | PC Pins | 0.394 (10.00mm) | General Purpose | - |
|
|
160103K630C-FCAP FILM 10000PF 10% 630VDC RAD |
447 | 1.84 |
RFQ |
Datasheet |
Radial | Bulk | 160 | Active | 10000 pF | ±10% | 220V | 630V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.512 L x 0.157 W (13.00mm x 4.00mm) | 0.374 (9.50mm) | PC Pins | 0.394 (10.00mm) | General Purpose | - |
|
160474K100F-FCAP FILM 0.47UF 10% 100VDC RAD |
130 | 1.92 |
RFQ |
Datasheet |
Radial | Bulk | 160 | Active | 0.47 µF | ±10% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.709 L x 0.197 W (18.00mm x 5.00mm) | 0.433 (11.00mm) | PC Pins | 0.591 (15.00mm) | General Purpose | - |
