Upload BOM| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
225P22392XD3CAP FILM 0.022UF 10% 200VDC RAD |
884 | 3.38 |
RFQ |
Datasheet |
Radial | Bulk | Orange Drop® 225P | Active | 0.022 µF | ±10% | 140V | 200V | Polyester | - | -55°C ~ 85°C | Through Hole | 0.799 L x 0.252 W (20.30mm x 6.40mm) | 0.579 (14.70mm) | PC Pins | 0.375 (9.52mm) | Audio; DC Link, DC Filtering | - |
|
225P15391WD3CAP FILM 0.015UF 10% 100VDC RAD |
140 | 3.38 |
RFQ |
Datasheet |
Radial | Bulk | Orange Drop® 225P | Active | 0.015 µF | ±10% | 70V | 100V | Polyester | - | -55°C ~ 85°C | Through Hole | 0.700 L x 0.252 W (17.78mm x 6.40mm) | 0.350 (8.90mm) | PC Pins | 0.375 (9.52mm) | Audio; DC Link, DC Filtering | - |
|

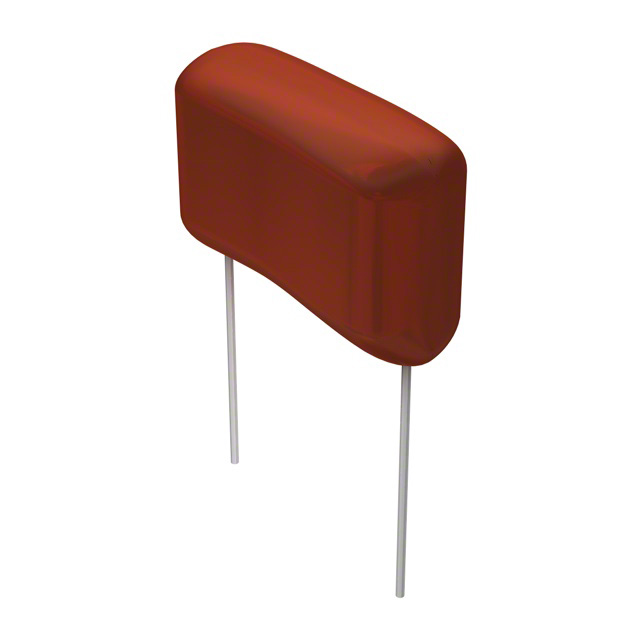

DPPM20D47K-FCAP FILM 4700PF 10% 2KVDC RADIAL |
2,323 | 3.40 |
RFQ |
Datasheet |
Radial | Bulk | DPPM | Active | 4700 pF | ±10% | 500V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.220 L x 0.394 W (31.00mm x 10.00mm) | 0.807 (20.50mm) | PC Pins | 1.043 (26.50mm) | High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
|
225P47294XD3CAP FILM 4700PF 10% 400VDC RAD |
987 | 3.56 |
RFQ |
Datasheet |
Radial | Bulk | Orange Drop® 225P | Active | 4700 pF | ±10% | - | 400V | Polyester | - | -55°C ~ 85°C | Through Hole | 0.799 L x 0.252 W (20.30mm x 6.40mm) | 0.551 (14.00mm) | PC Pins | 0.374 (9.50mm) | Audio; DC Link, DC Filtering | - |
|
|
716P22356L-159CAP FILM 0.022UF 5% 600VDC RAD |
903 | 3.75 |
RFQ |
Datasheet |
Radial | Bulk | Orange Drop® 716P | Active | 0.022 µF | ±5% | 200V | 600V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | - | - | PC Pins | - | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
|
942C20S15K-FCAP FILM 0.015UF 10% 2KVDC AXIAL |
2,579 | 3.86 |
RFQ |
Datasheet |
Axial | Bulk | 942C | Active | 0.015 µF | ±10% | 500V | 2000V (2kV) | Polypropylene (PP), Metallized | 40 mOhms | -55°C ~ 105°C | Through Hole | 0.571 Dia x 1.339 L (14.50mm x 34.00mm) | - | PC Pins | - | High Pulse, DV/DT | - |
|
940C20S33K-FCAP FILM 0.033UF 10% 2KVDC AXIAL |
3,088 | 3.91 |
RFQ |
Datasheet |
Axial | Bulk | 940C | Active | 0.033 µF | ±10% | 500V | 2000V (2kV) | Polypropylene (PP), Metallized | 20 mOhms | -55°C ~ 105°C | Through Hole | 0.531 Dia x 1.339 L (13.50mm x 34.00mm) | - | PC Pins | - | High Pulse, DV/DT | - |
|
|
716P10454LA3CAP FILM 0.1UF 5% 400VDC RADIAL |
297 | 3.99 |
RFQ |
Datasheet |
Radial | Bulk | Orange Drop® 716P | Active | 0.1 µF | ±5% | 200V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 1.252 L x 0.421 W (31.80mm x 10.70mm) | 0.953 (24.20mm) | PC Pins | 1.031 (26.20mm) | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
|
WMF2P22K-FCAP FILM 0.22UF 10% 250VDC AXIAL |
237 | 4.10 |
RFQ |
Datasheet |
Axial | Bulk | WMF | Active | 0.22 µF | ±10% | 125V | 250V | Polyester | - | -55°C ~ 125°C | Through Hole | 0.413 Dia x 1.185 L (10.50mm x 30.10mm) | - | PC Pins | - | General Purpose | - |
|
DPPM20S1K-FCAP FILM 10000PF 10% 2KVDC RAD |
109 | 4.10 |
RFQ |
Datasheet |
Radial | Bulk | DPPM | Active | 10000 pF | ±10% | 500V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.220 L x 0.551 W (31.00mm x 14.00mm) | 0.925 (23.50mm) | PC Pins | 1.043 (26.50mm) | High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
|
158X224CAP FILM 0.22UF 20% 275VAC RAD |
100 | 4.26 |
RFQ |
Datasheet |
Radial | Bulk | 158X | Active | 0.22 µF | ±20% | 275V | - | Polyester, Metallized | - | -40°C ~ 100°C | Through Hole | 0.984 L x 0.315 W (25.00mm x 8.00mm) | 0.709 (18.00mm) | PC Pins | 0.886 (22.50mm) | EMI, RFI Suppression | X2 |
|
930C6S47K-FCAP FILM 0.047UF 630VDC AXIAL |
2,244 | 4.35 |
RFQ |
Datasheet |
Axial | Bulk | 930C | Active | 0.047 µF | ±10% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.390 Dia x 0.748 L (9.90mm x 19.00mm) | - | PC Pins | - | General Purpose | - |
|
|
940C6P15K-FCAP FILM 0.15UF 10% 600VDC AXIAL |
3,764 | 4.38 |
RFQ |
Datasheet |
Axial | Bulk | 940C | Active | 0.15 µF | ±10% | 275V | 600V | Polypropylene (PP), Metallized | 13 mOhms | -55°C ~ 105°C | Through Hole | 0.413 Dia x 1.339 L (10.50mm x 34.00mm) | - | PC Pins | - | High Pulse, DV/DT | - |
|
|
942C10P1K-FCAP FILM 0.1UF 10% 1KVDC AXIAL |
3,460 | 4.39 |
RFQ |
Datasheet |
Axial | Bulk | 942C | Active | 0.1 µF | ±10% | 400V | 1000V (1kV) | Polypropylene (PP), Metallized | 8 mOhms | -55°C ~ 105°C | Through Hole | 0.630 Dia x 1.339 L (16.00mm x 34.00mm) | - | PC Pins | - | High Pulse, DV/DT | - |
|
|
940C30S33K-FCAP FILM 0.033UF 10% 3KVDC AXIAL |
2,511 | 4.82 |
RFQ |
Datasheet |
Axial | Bulk | 940C | Active | 0.033 µF | ±10% | 500V | 3000V (3kV) | Polypropylene (PP), Metallized | 14 mOhms | -55°C ~ 105°C | Through Hole | 0.709 Dia x 1.339 L (18.00mm x 34.00mm) | - | PC Pins | - | High Pulse, DV/DT | - |
|
|
940C6P68K-FCAP FILM 0.68UF 10% 600VDC AXIAL |
3,948 | 5.88 |
RFQ |
Datasheet |
Axial | Bulk | 940C | Active | 0.68 µF | ±10% | 275V | 600V | Polypropylene (PP), Metallized | 6 mOhms | -55°C ~ 105°C | Through Hole | 0.709 Dia x 1.339 L (18.00mm x 34.00mm) | - | PC Pins | - | High Pulse, DV/DT | - |
|
|
930C4W2K-FCAP FILM 2UF 10% 400VDC AXIAL |
3,825 | 8.79 |
RFQ |
Datasheet |
Axial | Bulk | 930C | Active | 2 µF | ±10% | 250V | 400V | Polypropylene (PP), Metallized | 21 mOhms | -55°C ~ 105°C | Through Hole | 0.752 Dia x 1.748 L (19.10mm x 44.40mm) | - | PC Pins | - | General Purpose | - |
|
|
940C12P47K-FCAP FILM 0.47UF 1.2KVDC AXIAL |
2,929 | 9.20 |
RFQ |
Datasheet |
Axial | Bulk | 940C | Active | 0.47 µF | ±10% | 500V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 7 mOhms | -55°C ~ 105°C | Through Hole | 0.906 Dia x 1.811 L (23.00mm x 46.00mm) | - | PC Pins | - | High Pulse, DV/DT | - |
|

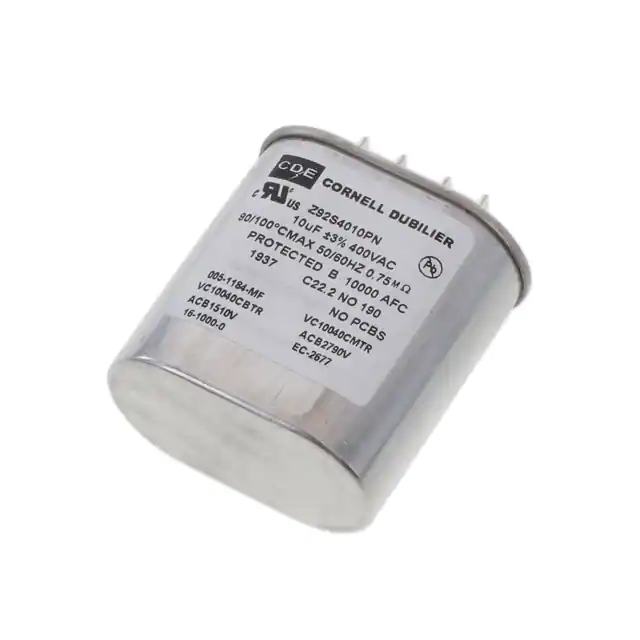

Z92S4010PNCAP FILM 10UF 3% 400VAC RADIAL |
3,124 | 5.75 |
RFQ |
Datasheet |
Radial, Can | Bulk | - | Active | 10 µF | ±3% | 400V | - | - | - | -40°C ~ 105°C | Chassis Mount | 2.690 L x 1.560 W (68.33mm x 39.62mm) | 2.870 (72.90mm) | Threaded, Male | 0.810 (20.57mm) | General Purpose | - |
|
|
942C16P15K-FCAP FILM 0.15UF 1.6KVDC AXIAL |
2,414 | 5.95 |
RFQ |
Datasheet |
Axial | Bulk | 942C | Active | 0.15 µF | ±10% | 460V | 1600V (1.6kV) | Polypropylene (PP), Metallized | 5 mOhms | -55°C ~ 105°C | Through Hole | 0.807 Dia x 1.811 L (20.50mm x 46.00mm) | - | PC Pins | - | High Pulse, DV/DT | - |
