Upload BOM| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

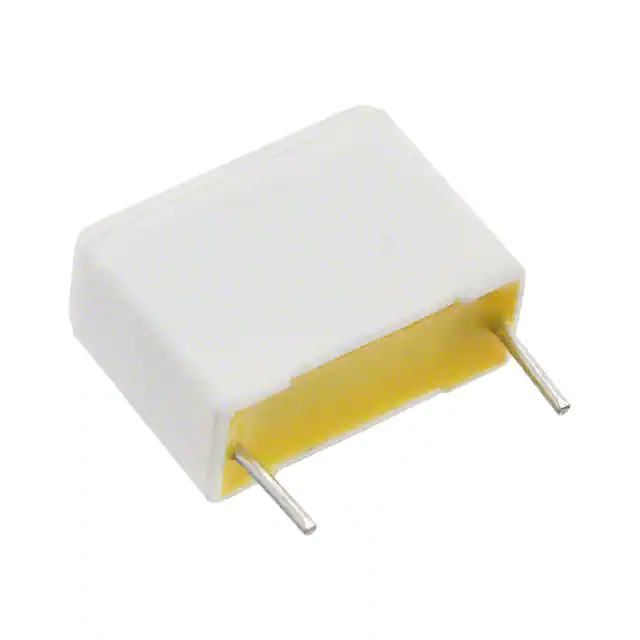

160474J100F-FCAP FILM 0.47UF 5% 100VDC RADIAL |
282 | 2.16 |
RFQ |
Datasheet |
Radial | Bulk | 160 | Active | 0.47 µF | ±5% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.709 L x 0.197 W (18.00mm x 5.00mm) | 0.433 (11.00mm) | PC Pins | 0.591 (15.00mm) | General Purpose | - |
|
WMF1D22K-FCAP FILM 2200PF 10% 100VDC AXIAL |
460 | 2.40 |
RFQ |
Datasheet |
Axial | Bulk | WMF | Active | 2200 pF | ±10% | 65V | 100V | Polyester | - | -55°C ~ 125°C | Through Hole | 0.189 Dia x 0.563 L (4.80mm x 14.30mm) | - | PC Pins | - | General Purpose | - |
|

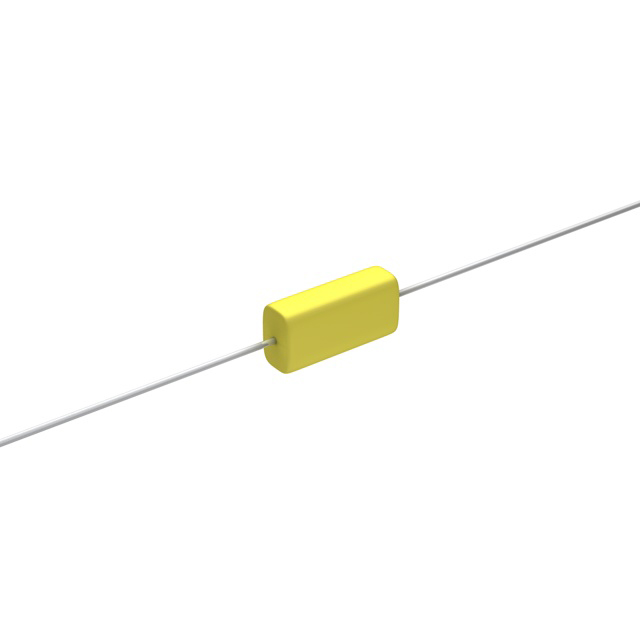

MMP2P1K-FCAP FILM 0.1UF 10% 250VDC AXIAL |
500 | 2.78 |
RFQ |
Datasheet |
Axial | Bulk | MMP | Active | 0.1 µF | ±10% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.335 W, 0.217 T x 0.669 L (8.50mm, 5.50mm x 17.00mm) | - | PC Pins | - | General Purpose | - |
|

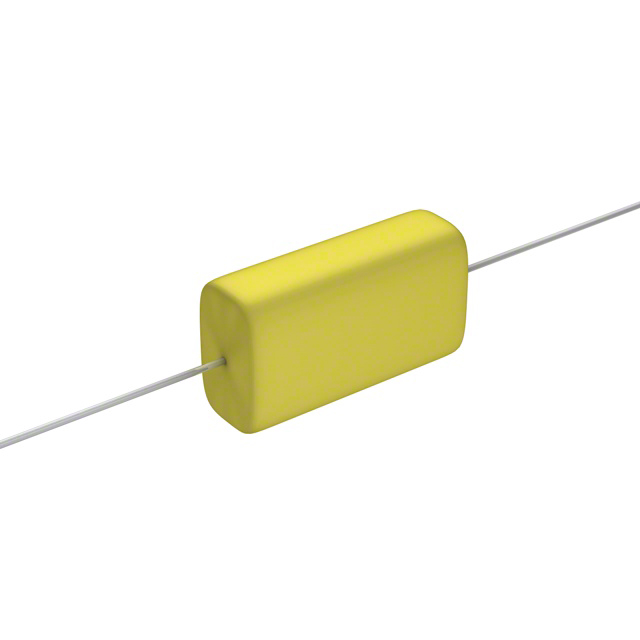

MMP6P1K-FCAP FILM 0.1UF 10% 630VDC AXIAL |
380 | 2.88 |
RFQ |
Datasheet |
Axial | Bulk | MMP | Active | 0.1 µF | ±10% | 250V | 630V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.512 W, 0.315 T x 0.906 L (13.00mm, 8.00mm x 23.00mm) | - | PC Pins | - | General Purpose | - |
|
160105K100H-FCAP FILM 1UF 10% 100VDC RADIAL |
477 | 3.06 |
RFQ |
Datasheet |
Radial | Bulk | 160 | Active | 1 µF | ±10% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.709 L x 0.295 W (18.00mm x 7.50mm) | 0.532 (13.50mm) | PC Pins | 0.591 (15.00mm) | General Purpose | - |
|
150684J100FCCAP FILM 0.68UF 5% 100VDC AXIAL |
356 | 3.35 |
RFQ |
Datasheet |
Axial | Bulk | 150 | Active | 0.68 µF | ±5% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.335 Dia x 0.807 L (8.50mm x 20.50mm) | - | PC Pins | - | General Purpose | - |
|

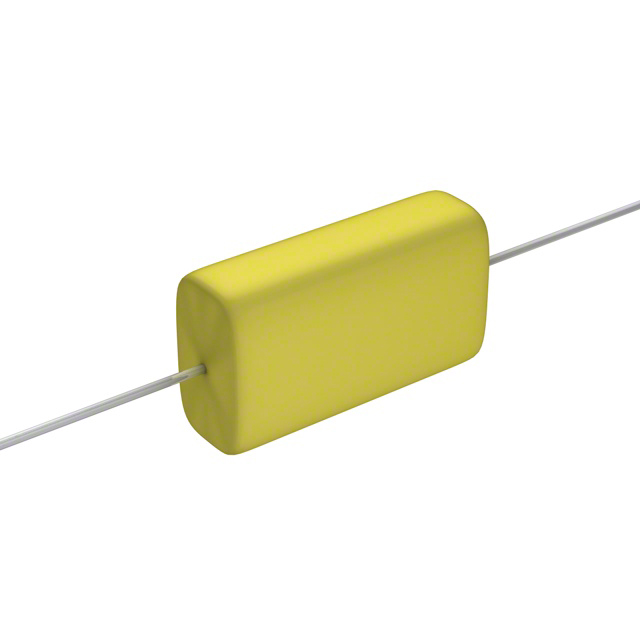

MMP4P47K-FCAP FILM 0.47UF 10% 400VDC AXIAL |
886 | 3.37 |
RFQ |
Datasheet |
Axial | Bulk | MMP | Active | 0.47 µF | ±10% | 200V | 400V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.610 W, 0.354 T x 1.063 L (15.50mm, 9.00mm x 27.00mm) | - | PC Pins | - | General Purpose | - |
|
715P152516LD3CAP FILM 1500PF 5% 1.6KVDC RAD |
2,011 | 3.38 |
RFQ |
Datasheet |
Radial | Bulk | Orange Drop® 715P | Active | 1500 pF | ±5% | 500V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.319 Dia x 1.252 L (8.10mm x 31.80mm) | 0.610 (15.50mm) | PC Pins | 0.720 (18.30mm) | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
|
715P15354JD3CAP FILM 0.015UF 5% 400VDC RAD |
3,093 | 3.75 |
RFQ |
Datasheet |
Radial | Bulk | Orange Drop® 715P | Active | 0.015 µF | ±5% | 200V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.339 Dia x 0.701 L (8.60mm x 17.80mm) | 0.654 (16.60mm) | PC Pins | 0.375 (9.52mm) | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
|
|
716P39356KB3CAP FILM 0.039UF 5% 600VDC RAD |
592 | 3.81 |
RFQ |
Datasheet |
Radial | Bulk | Orange Drop® 716P | Active | 0.039 µF | ±5% | 200V | 600V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.902 L x 0.480 W (22.90mm x 12.20mm) | 1.012 (25.70mm) | PC Pins | 0.688 (17.48mm) | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
|
225P56391WD3CAP FILM 0.056UF 10% 100VDC RAD |
749 | 3.85 |
RFQ |
Datasheet |
Radial | Bulk | Orange Drop® 225P | Active | 0.056 µF | ±10% | 70V | 100V | Polyester | - | -55°C ~ 85°C | Through Hole | 0.701 L x 0.339 W (17.80mm x 8.60mm) | 0.488 (12.40mm) | PC Pins | 0.375 (9.52mm) | Audio; DC Link, DC Filtering | - |
|
225P33491XD3CAP FILM 0.33UF 10% 100VDC RAD |
504 | 4.01 |
RFQ |
Datasheet |
Radial | Bulk | Orange Drop® 225P | Active | 0.33 µF | ±10% | 70V | 100V | Polyester | - | -55°C ~ 85°C | Through Hole | 0.799 L x 0.520 W (20.30mm x 13.20mm) | 0.772 (19.60mm) | PC Pins | 0.375 (9.52mm) | Audio; DC Link, DC Filtering | - |
|
DME1W4P7K-FCAP FILM 4.7UF 10% 100VDC RADIAL |
3,098 | 4.09 |
RFQ |
Datasheet |
Radial | Bulk | DME | Active | 4.7 µF | ±10% | 65V | 100V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 1.024 L x 0.315 W (26.00mm x 8.00mm) | 0.728 (18.50mm) | PC Pins | 0.886 (22.50mm) | General Purpose | - |
|
|
Z23S3720M01NCAP FILM 20UF 6% 370VAC RADIAL |
2,514 | 5.91 |
RFQ |
Datasheet |
Radial, Can | Bulk | - | Active | 20 µF | ±6% | 370V | - | - | - | -40°C ~ 105°C | Chassis Mount | 1.750 Dia (44.45mm) | 2.870 (72.90mm) | Quick Connect, Disconnect | 0.810 (20.57mm) | General Purpose | - |
|
|
Z93S4015MNCAP FILM 15UF 3% 400VAC RADIAL |
3,643 | 6.20 |
RFQ |
Datasheet |
Radial, Can | Bulk | - | Active | 15 µF | ±3% | 400V | - | - | - | -40°C ~ 105°C | Chassis Mount | 2.910 L x 1.910 W (73.91mm x 48.51mm) | 2.870 (72.90mm) | Threaded, Male | 0.810 (20.57mm) | General Purpose | - |
|
|
D83W4015M01HCAP FILM 15UF 3% 400VAC RADIAL |
2,208 | 6.50 |
RFQ |
Radial, Can | Bulk | - | Active | 15 µF | ±3% | 400V | - | - | - | -40°C ~ 105°C | Chassis Mount | 1.580 Dia (40.13mm) | 3.620 (91.95mm) | Wire Leads | - | General Purpose | - | |
|
953BQW4P5KSF-FCAP FILM 4.5UF 10% 250VAC RADIAL |
2,399 | 10.02 |
RFQ |
Datasheet |
Radial - 4 Leads | Bulk | 953B | Active | 4.5 µF | ±10% | 250V | - | Polypropylene (PP), Metallized | 12 mOhms | -40°C ~ 85°C | Through Hole | 1.634 L x 0.787 W (41.50mm x 20.00mm) | 1.614 (41.00mm) | PC Pins | 1.476 (37.50mm) | EMI, RFI Suppression | - |
|

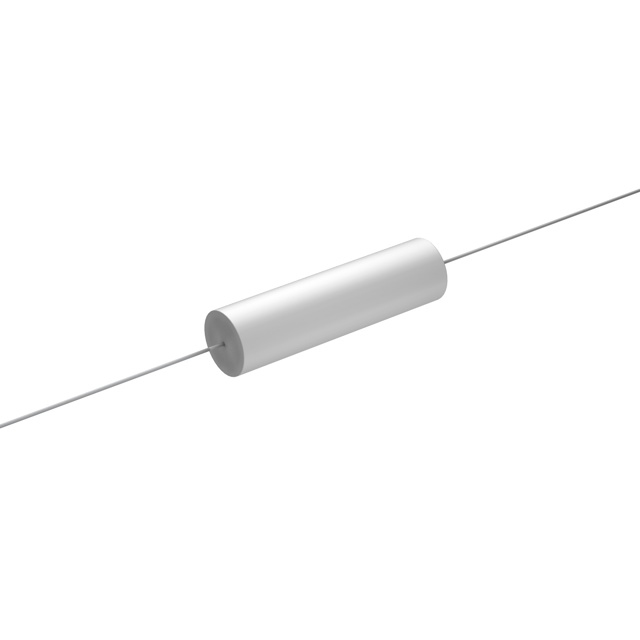

MMWA4W1K-FCAP FILM 1UF 10% 400VDC AXIAL |
2,320 | 9.43 |
RFQ |
Datasheet |
Axial | Bulk | MMWA | Active | 1 µF | ±10% | 200V | 400V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.469 Dia x 1.748 L (11.90mm x 44.40mm) | - | PC Pins | - | General Purpose | - |
|
|
953BIW17P5KSF-FCAP FILM 17.5UF 10% 160VAC RAD |
3,903 | 10.63 |
RFQ |
Datasheet |
Radial - 4 Leads | Bulk | 953B | Active | 17.5 µF | ±10% | 160V | - | Polypropylene (PP), Metallized | 7 mOhms | -40°C ~ 85°C | Through Hole | 1.634 L x 0.945 W (41.50mm x 24.00mm) | 1.772 (45.00mm) | PC Pins | 1.476 (37.50mm) | EMI, RFI Suppression | - |
|

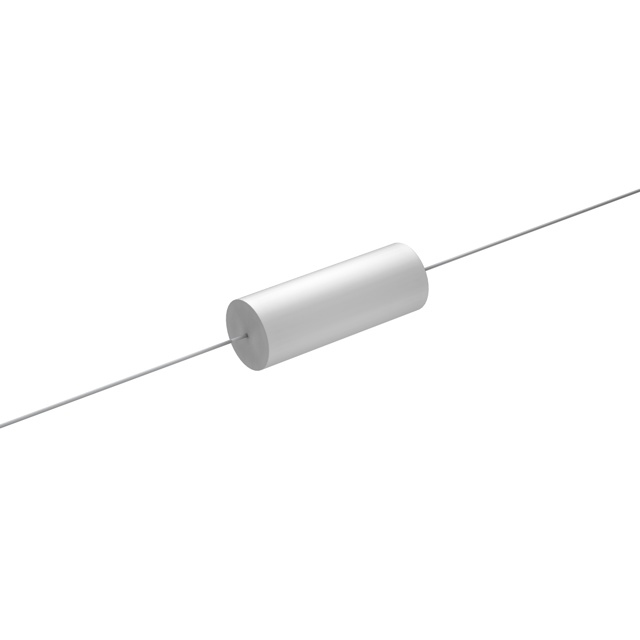

MMWA05W4K-FCAP FILM 4UF 10% 50VDC AXIAL |
2,776 | 17.47 |
RFQ |
Datasheet |
Axial | Bulk | MMWA | Active | 4 µF | ±10% | 35V | 50V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.504 Dia x 1.374 L (12.80mm x 34.90mm) | - | PC Pins | - | General Purpose | - |
