Upload BOM| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MMWA10S47K-FCAP FILM 0.047UF 10% 1KVDC AXIAL |
385 | 3.16 |
RFQ |
Datasheet |
Axial | Bulk | MMWA | Active | 0.047 µF | ±10% | 480V | 1000V (1kV) | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.335 Dia x 1.063 L (8.50mm x 27.00mm) | - | PC Pins | - | General Purpose | - |
|
|
715P22332JD3CAP FILM 0.022UF 3% 200VDC RAD |
986 | 3.21 |
RFQ |
Datasheet |
Radial | Bulk | Orange Drop® 715P | Active | 0.022 µF | ±3% | 155V | 200V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.311 Dia x 0.701 L (7.90mm x 17.80mm) | 0.622 (15.80mm) | PC Pins | 0.375 (9.52mm) | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
|
ALH155K251A0221.5UF 250VAC 32X20X11MM LS=27.5 |
299 | 3.23 |
RFQ |
Datasheet |
Radial | Bulk | ALH | Active | 1.5 µF | ±10% | 250V | - | Polypropylene (PP) | 10 mOhms | -40°C ~ 105°C | Through Hole | 1.260 L x 0.433 W (32.00mm x 11.00mm) | 0.819 (20.80mm) | PC Pins | 1.083 (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200 |
|
|
225P10391WA2CAP FILM 10000PF 10% 100VDC RAD |
1,000 | 3.28 |
RFQ |
Datasheet |
Radial | Bulk | Orange Drop® 225P | Active | 10000 pF | ±10% | - | 100V | Polyester | - | -55°C ~ 85°C | Through Hole | 0.700 L x 0.252 W (17.78mm x 6.40mm) | 0.350 (8.90mm) | PC Pins | 0.563 (14.30mm) | Audio; DC Link, DC Filtering | - |
|
|
716P682510KB3CAP FILM 6800PF 5% 1KVDC RADIAL |
393 | 3.28 |
RFQ |
Datasheet |
Radial | Bulk | Orange Drop® 716P | Active | 6800 pF | ±5% | 450V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.850 L x 0.339 W (21.60mm x 8.60mm) | 0.803 (20.40mm) | PC Pins | 0.591 (15.00mm) | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
|
|
ALH205K251A0322UF 250VAC 32X22X13MM LS=27.5 |
224 | 3.37 |
RFQ |
Datasheet |
Radial | Bulk | ALH | Active | 2 µF | ±10% | 250V | - | Polypropylene (PP) | 8.2 mOhms | -40°C ~ 105°C | Through Hole | 1.260 L x 0.512 W (32.00mm x 13.00mm) | 0.898 (22.80mm) | PC Pins | 1.083 (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200 |
|
|
715P472916LA3CAP FILM 4700PF 10% 1.6KVDC RAD |
1,000 | 3.48 |
RFQ |
Datasheet |
Radial | Bulk | Orange Drop® 715P | Active | 4700 pF | ±10% | 500V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.461 Dia x 1.252 L (11.70mm x 31.80mm) | 0.752 (19.10mm) | PC Pins | 1.031 (26.20mm) | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
|
|
ALH105K351A0321UF 350VAC 32X22X13MM LS=27.5 |
240 | 3.54 |
RFQ |
Datasheet |
Radial | Bulk | ALH | Active | 1 µF | ±10% | 350V | - | Polypropylene (PP) | 10.9 mOhms | -40°C ~ 105°C | Through Hole | 1.260 L x 0.512 W (32.00mm x 13.00mm) | 0.898 (22.80mm) | PC Pins | 1.083 (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200 |
|
|
225P33394XD3CAP FILM 0.033UF 10% 400VDC RAD |
272 | 3.56 |
RFQ |
Datasheet |
Radial | Bulk | Orange Drop® 225P | Active | 0.033 µF | ±10% | - | 400V | Polyester | - | -55°C ~ 85°C | Through Hole | 0.799 L x 0.339 W (20.30mm x 8.60mm) | 0.650 (16.50mm) | PC Pins | 0.374 (9.50mm) | Audio; DC Link, DC Filtering | - |
|
|
715P4725800LA3CAP FILM 4700PF 5% 1.8KVDC RAD |
1,000 | 3.60 |
RFQ |
Datasheet |
Radial | Bulk | Orange Drop® 715P | Active | 4700 pF | ±5% | 800V | 1800V (1.8kV) | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.429 Dia x 1.122 L (10.90mm x 28.50mm) | 0.740 (18.80mm) | PC Pins | 0.886 (22.50mm) | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
|
|
715P47256JA3CAP FILM 4700PF 5% 600VDC RADIAL |
994 | 3.75 |
RFQ |
Datasheet |
Radial | Bulk | Orange Drop® 715P | Active | 4700 pF | ±5% | 200V | 600V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.339 Dia x 0.701 L (8.60mm x 17.80mm) | 0.634 (16.10mm) | PC Pins | 0.500 (12.70mm) | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
|

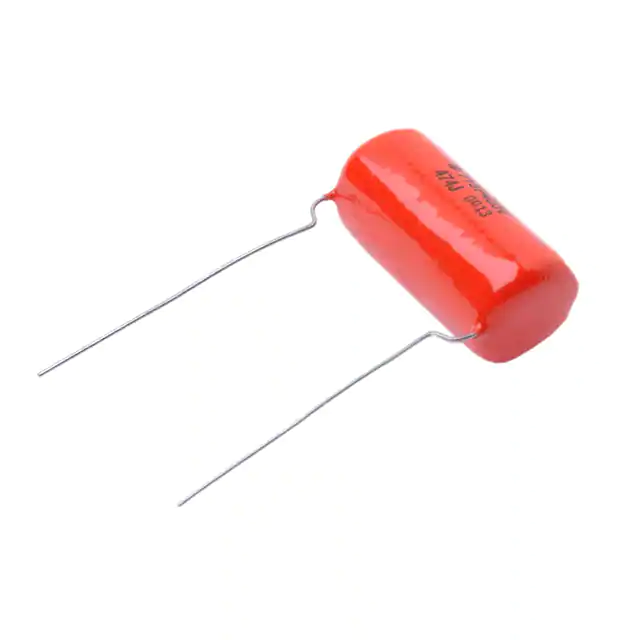

CP-OD715-47-400VCAP FILM .470UF 400V 715 SERIES |
3,736 | 3.75 |
RFQ |
Datasheet |
Radial | Bulk | Orange Drop® 715P | Active | 0.47 µF | - | - | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | - | - | PC Pins | - | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
|
|
225P10392XA3CAP FILM 10000PF 10% 200VDC RAD |
100 | 4.14 |
RFQ |
Datasheet |
Radial | Bulk | Orange Drop® 225P | Active | 10000 pF | ±10% | - | 200V | Polyester | - | -55°C ~ 85°C | Through Hole | 0.799 L x 0.252 W (20.30mm x 6.40mm) | 0.579 (14.70mm) | PC Pins | 0.614 (15.60mm) | Audio; DC Link, DC Filtering | - |
|
942C6P15K-FCAP FILM 0.15UF 10% 600VDC AXIAL |
2,982 | 4.34 |
RFQ |
Datasheet |
Axial | Bulk | 942C | Active | 0.15 µF | ±10% | 300V | 600V | Polypropylene (PP), Metallized | 5 mOhms | -55°C ~ 105°C | Through Hole | 0.551 Dia x 1.339 L (14.00mm x 34.00mm) | - | PC Pins | - | High Pulse, DV/DT | - |
|

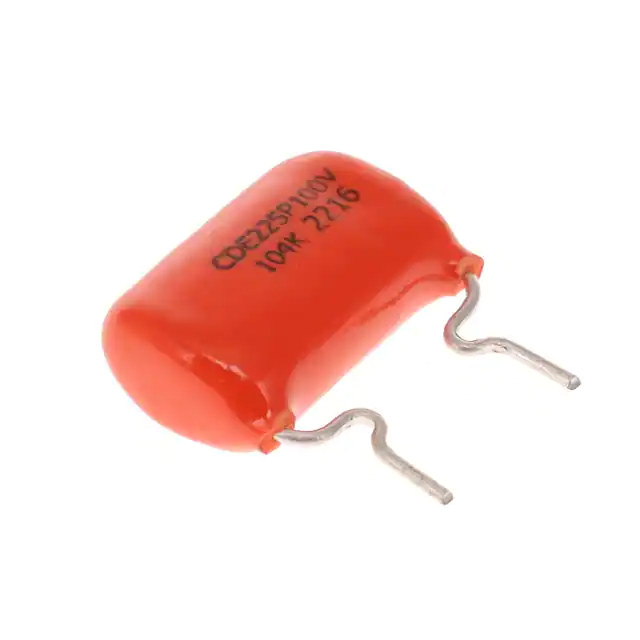

225P10491WF1CAP FILM 0.1UF 10% 100VDC RADIAL |
100 | 4.46 |
RFQ |
Datasheet |
Radial | Bulk | Orange Drop® 225P | Active | 0.1 µF | ±10% | - | 100V | Polyester | - | -55°C ~ 85°C | Through Hole | 0.700 L x 0.402 W (17.78mm x 10.20mm) | 0.551 (14.00mm) | PC Pins | 0.394 (10.00mm) | Audio; DC Link, DC Filtering | - |
|
|
942C8P22K-FCAP FILM 0.22UF 10% 850VDC AXIAL |
2,626 | 5.18 |
RFQ |
Datasheet |
Axial | Bulk | 942C | Active | 0.22 µF | ±10% | 360V | 850V | Polypropylene (PP), Metallized | 7 mOhms | -55°C ~ 105°C | Through Hole | 0.709 Dia x 1.339 L (18.00mm x 34.00mm) | - | PC Pins | - | High Pulse, DV/DT | - |
|
930C6P47K-FCAP FILM 0.47UF 10% 630VDC AXIAL |
100 | 5.91 |
RFQ |
Datasheet |
Axial | Bulk | 930C | Active | 0.47 µF | ±10% | 250V | 630V | Polypropylene (PP), Metallized | 28 mOhms | -55°C ~ 105°C | Through Hole | 0.697 Dia x 1.457 L (17.70mm x 37.00mm) | - | PC Pins | - | General Purpose | - |
|

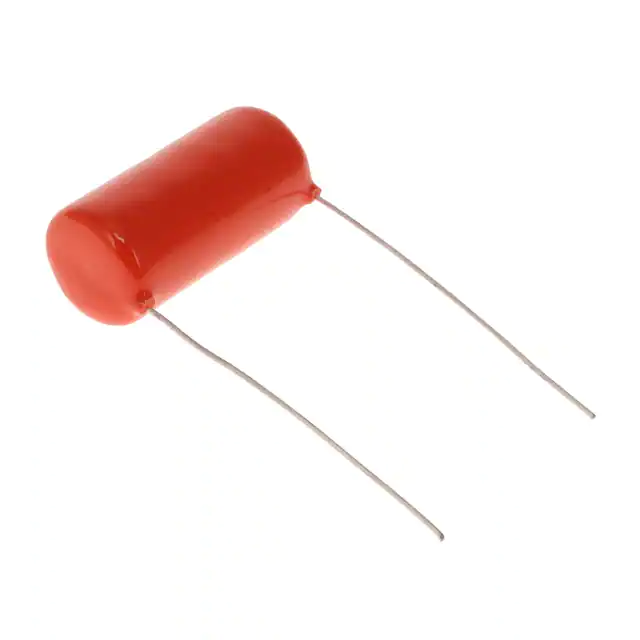

715P333516MA3CAP FILM 0.033UF 5% 1.6KVDC RAD |
2,150 | 6.12 |
RFQ |
Datasheet |
Radial | Bulk | Orange Drop® 715P | Active | 0.033 µF | ±5% | 500V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.811 Dia x 1.650 L (20.60mm x 41.90mm) | 1.102 (28.00mm) | PC Pins | 1.406 (35.70mm) | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
|
BLH685K112B044DC LINK, THB, 85/85, AEC-Q200 |
3,200 | 7.02 |
RFQ |
Datasheet |
Radial - 4 Leads | Bulk | BLH | Active | 6.8 µF | ±10% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 13.5 mOhms | -40°C ~ 105°C | Through Hole | 2.264 L x 1.772 W (57.50mm x 45.00mm) | 1.350 (34.30mm) | PC Pins | 1.476 (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 |
|
|
6PSP10CAP FILM 0.1UF 10% 600VDC RADIAL |
2,858 | 7.53 |
RFQ |
Datasheet |
Radial | Bulk | Orange Drop® PS | Active | 0.1 µF | ±10% | 200V | 600V | Polypropylene (PP) | - | -40°C ~ 85°C | Through Hole | 0.650 Dia x 1.201 L (16.50mm x 30.50mm) | 0.886 (22.50mm) | PC Pins | 0.969 (24.60mm) | Audio | - |
