Upload BOM| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
715P47396LA3CAP FILM 0.047UF 10% 600VDC RAD |
2,811 | 3.79 |
RFQ |
Datasheet |
Radial | Bulk | Orange Drop® 715P | Active | 0.047 µF | ±10% | 200V | 600V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.520 Dia x 1.252 L (13.20mm x 31.80mm) | 0.811 (20.60mm) | PC Pins | 1.031 (26.20mm) | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
|
715P22256JD3CAP FILM 2200PF 5% 600VDC RADIAL |
477 | 3.85 |
RFQ |
Datasheet |
Radial | Bulk | Orange Drop® 715P | Active | 2200 pF | ±5% | 200V | 600V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.331 Dia x 0.701 L (8.40mm x 17.80mm) | 0.622 (15.80mm) | PC Pins | 0.375 (9.52mm) | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
|
225P10491WD3CAP FILM 0.1UF 10% 100VDC RADIAL |
796 | 3.91 |
RFQ |
Datasheet |
Radial | Bulk | Orange Drop® 225P | Active | 0.1 µF | ±10% | 70V | 100V | Polyester | - | -55°C ~ 85°C | Through Hole | 0.700 L x 0.402 W (17.78mm x 10.20mm) | 0.551 (14.00mm) | PC Pins | 0.375 (9.52mm) | Audio; DC Link, DC Filtering | - |
|
715P22452LD3CAP FILM 0.22UF 5% 200VDC RADIAL |
306 | 3.91 |
RFQ |
Datasheet |
Radial | Bulk | Orange Drop® 715P | Active | 0.22 µF | ±5% | 155V | 200V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.512 Dia x 1.252 L (13.00mm x 31.80mm) | 0.823 (20.90mm) | PC Pins | 0.720 (18.30mm) | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
|

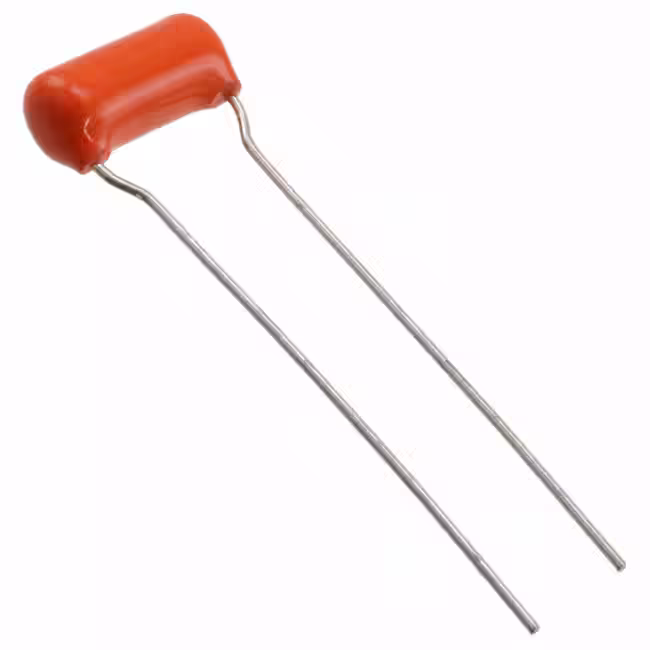

715P10354JD3CAP FILM 10000PF 5% 400VDC RAD |
3,250 | 3.91 |
RFQ |
Datasheet |
Radial | Bulk | Orange Drop® 715P | Active | 10000 pF | ±5% | 200V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.299 Dia x 0.701 L (7.60mm x 17.80mm) | 0.610 (15.50mm) | PC Pins | 0.375 (9.52mm) | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
|
225P10494XD3CAP FILM 0.1UF 10% 400VDC RADIAL |
909 | 4.12 |
RFQ |
Datasheet |
Radial | Bulk | Orange Drop® 225P | Active | 0.1 µF | ±10% | 200V | 400V | Polyester | - | -55°C ~ 85°C | Through Hole | 0.799 L x 0.520 W (20.30mm x 13.20mm) | 0.839 (21.30mm) | PC Pins | 0.375 (9.52mm) | Audio; DC Link, DC Filtering | - |
|

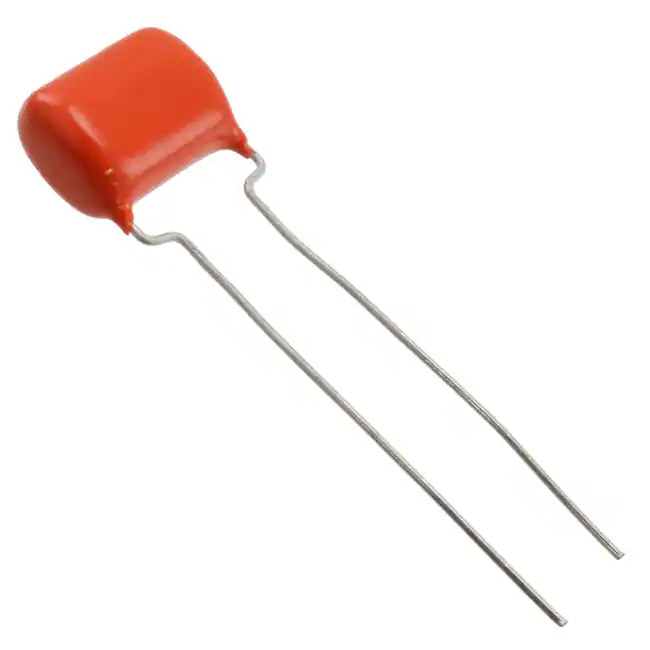

225P47394XD3CAP FILM 0.047UF 10% 400VDC RAD |
3,978 | 4.23 |
RFQ |
Datasheet |
Radial | Bulk | Orange Drop® 225P | Active | 0.047 µF | ±10% | 200V | 400V | Polyester | - | -55°C ~ 85°C | Through Hole | 0.799 L x 0.409 W (20.30mm x 10.40mm) | 0.650 (16.50mm) | PC Pins | 0.375 (9.52mm) | Audio; DC Link, DC Filtering | - |
|
475K100CS4GCAP NETWORK 4.7UF 100V 6SMD |
3,114 | 25.31 |
RFQ |
Datasheet |
6-SMD, Gull Wing | Tube | Capstick® CS | Active | 4.7 µF | ±10% | - | 100V | Polymer, Metallized | 6 mOhms | -55°C ~ 125°C | Surface Mount | 0.524 L x 0.500 W (13.30mm x 12.70mm) | 0.252 (6.40mm) | Gull Wing | 0.394 (10.00mm) | DC Link, DC Filtering; High Frequency, Switching | - |
|
UNL12W7P5K-FCAP FILM 7.5UF 10% 1.2KVDC RAD |
2,605 | 29.61 |
RFQ |
Datasheet |
Radial, Can | Bulk | UNL | Active | 7.5 µF | ±10% | - | 1200V (1.2kV) | Polypropylene (PP), Metallized | 13.5 mOhms | -55°C ~ 105°C | Through Hole | 1.378 Dia (35.00mm) | 2.134 (54.20mm) | PC Pins | 0.500 (12.70mm) | - | - |
|
SCD205K122A3Z25-FCAP FILM 2UF 10% 1.2KVDC SCREW |
3,265 | 37.86 |
RFQ |
Datasheet |
Rectangular Box | Bulk | SCD | Active | 2 µF | ±10% | 580V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 4 mOhms | -55°C ~ 85°C | Chassis Mount | 2.224 L x 1.827 W (56.50mm x 46.40mm) | 1.976 (50.20mm) | Screw Terminals | 1.000 (25.40mm) | Snubber | - |
|
SCRN234R-FCAP FILM 2UF 10% 1KVPK RADIAL |
2,551 | 55.50 |
RFQ |
Datasheet |
Radial, Can | Bulk | SCR | Active | 2 µF | ±10% | 1000Vpk (1KVPK) | - | Paper, Metallized | - | -40°C ~ 80°C | Chassis Mount, Requires Holder/Bracket | 2.160 L x 1.310 W (54.86mm x 33.27mm), Lip | 3.190 (81.03mm) | Threaded, Male | 0.810 (20.57mm) | Commutation; High Frequency, Switching; High Pulse, DV/DT | - |
|
|
SCRN247R-FCAP FILM 0.5UF 10% 2KVPK RADIAL |
3,898 | 71.28 |
RFQ |
Datasheet |
Radial, Can | Bulk | SCR | Active | 0.5 µF | ±10% | 2000Vpk (2KVPK) | - | Paper, Metallized | - | -40°C ~ 80°C | Chassis Mount, Requires Holder/Bracket | 2.160 L x 1.310 W (54.86mm x 33.27mm), Lip | 2.690 (68.33mm) | Threaded, Male | 0.810 (20.57mm) | Commutation; High Frequency, Switching; High Pulse, DV/DT | - |
|
944U141K102ACICAP FILM 140UF 10% 1KVDC RADIAL |
3,781 | 78.60 |
RFQ |
Datasheet |
Radial, Can | Bulk | 944U | Active | 140 µF | ±10% | - | 1000V (1kV) | Polypropylene (PP), Metallized | 1 mOhms | -40°C ~ 85°C | Chassis Mount | 3.327 Dia (84.50mm) | 2.559 (65.00mm) | Threaded, Female | 1.772 (45.00mm) | DC Link, DC Filtering | - |
|
|
SCRN222R-FCAP FILM 5UF 10% 600VPK RADIAL |
2,687 | 81.58 |
RFQ |
Datasheet |
Radial, Can | Bulk | SCR | Active | 5 µF | ±10% | 600Vpk | - | Paper, Metallized | - | -40°C ~ 80°C | Chassis Mount, Requires Holder/Bracket | 2.160 L x 1.310 W (54.86mm x 33.27mm), Lip | 4.310 (109.47mm) | Threaded, Male | 0.810 (20.57mm) | Commutation; High Frequency, Switching; High Pulse, DV/DT | - |
|
|
SCRN246R-FCAP FILM 0.25UF 10% 2KVPK RADIAL |
2,708 | 82.16 |
RFQ |
Datasheet |
Radial, Can | Bulk | SCR | Active | 0.25 µF | ±10% | 2000Vpk (2KVPK) | - | Paper, Metallized | - | -40°C ~ 80°C | Chassis Mount, Requires Holder/Bracket | 2.160 L x 1.310 W (54.86mm x 33.27mm), Lip | 2.190 (55.63mm) | Threaded, Male | 0.810 (20.57mm) | Commutation; High Frequency, Switching; High Pulse, DV/DT | - |
|
SCRN244R-FCAP FILM 5UF 10% 1.5KVPK RADIAL |
2,068 | 86.78 |
RFQ |
Datasheet |
Radial, Can | Bulk | SCR | Active | 5 µF | ±10% | 1500Vpk (1.5KVPK) | - | Paper, Metallized | - | -40°C ~ 80°C | Chassis Mount, Requires Holder/Bracket | 2.910 L x 1.910 W (73.91mm x 48.51mm), Lip | 5.810 (147.57mm) | Threaded, Male | 1.380 (35.05mm) | Commutation; High Frequency, Switching; High Pulse, DV/DT | - |
|
|
944U221K801ACICAP FILM 220UF 10% 800VDC RADIAL |
100 | 92.21 |
RFQ |
Datasheet |
Radial, Can | Bulk | 944U | Active | 220 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | 1 mOhms | -40°C ~ 85°C | Chassis Mount | 3.327 Dia (84.50mm) | 2.559 (65.00mm) | Threaded, Female | 1.772 (45.00mm) | DC Link, DC Filtering | - |
|
947C271K122CCMSCAP FILM 270UF 10% 1.2KVDC RAD |
3,150 | 93.79 |
RFQ |
Datasheet |
Radial, Can | Bulk | 947C | Active | 270 µF | ±10% | 230V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 4.4 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 3.543 Dia (90.00mm) | 5.787 (147.00mm) | Threaded, Male | 1.772 (45.00mm) | DC Link, DC Filtering | - |
|
DME2S33K-FCAP FILM 0.033UF 10% 250VDC RAD |
855 | 0.95 |
RFQ |
Datasheet |
Radial | Bulk | DME | Active | 0.033 µF | ±10% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.406 L x 0.177 W (10.30mm x 4.50mm) | 0.354 (9.00mm) | PC Pins | 0.295 (7.50mm) | General Purpose | - |
|
|
DME2S47K-FCAP FILM 0.047UF 10% 250VDC RAD |
572 | 0.95 |
RFQ |
Datasheet |
Radial | Bulk | DME | Active | 0.047 µF | ±10% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.406 L x 0.177 W (10.30mm x 4.50mm) | 0.354 (9.00mm) | PC Pins | 0.295 (7.50mm) | General Purpose | - |
